Installation Procedure

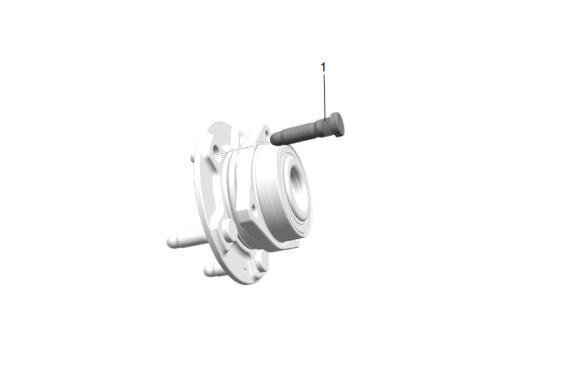

Position the NEW wheel bolt (1) in the flange of the hub assembly.

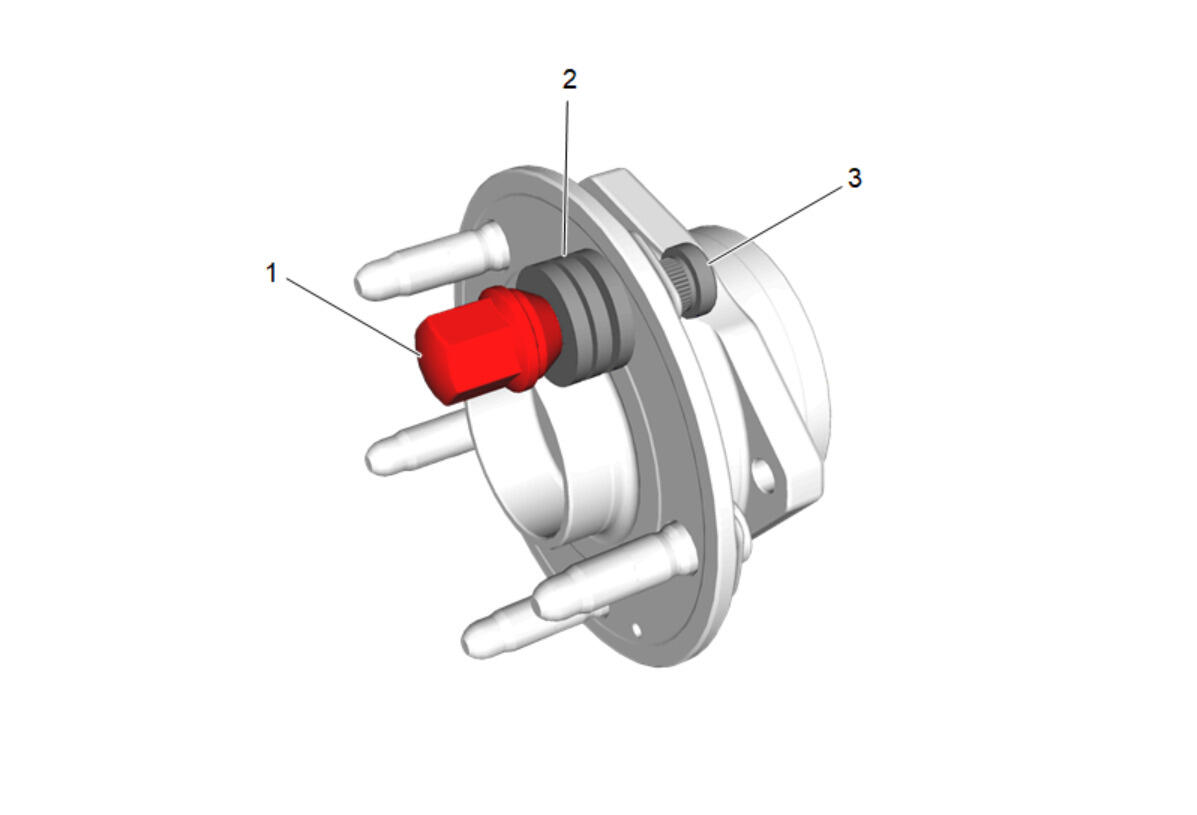

Install flat washers (2) and an OLD wheel nut (1) on the wheel bolt (3).
- Use a suitable tool to prevent the flange on the hub assembly from rotating.
- Tighten the wheel nut (1) until the wheel bolt (3) is fully seated.
- Remove the wheel nut (1) and flat washers (2).
- Apply a thin coating of grease evenly ensuring complete coverage of the rear suspension knuckle pilot bore only. Adhesives, Fluids, Lubricants, and Sealers
Rear Wheel Hub (1) - Install
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Rear Wheel Hub Bolt (1) - Install and tighten [3x] - Fastener Specifications
Rear Wheel Speed Sensor (2) - Install
- Rear Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications
- Using the CH-42450-A Wheel Hub Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange.
- Using the CH-41013 Rotor Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface and mounting surface of the brake rotor.
- Inspect the mating surfaces of the hub/axle flange and the rotor to ensure there are no foreign particles or debris remaining.
Rear Brake Rotor (2) - Install
- Rear Brake Rotor Bolt (1) - Install and tighten - Fastener Specifications
Parking Brake Caliper (2) - Install
- Parking Brake Bolt (1) - Install and tighten - Fastener Specifications
Connect the park brake wire harness connect (2).
- Install the chassis wire harness retainer (1).
Install the rear brake caliper (2).
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Rear Brake Caliper Bracket Bolt (1) - Install and tighten - Fastener Specifications
{ If equipped } Rear Disc Brake Pad Wear Sensor (1) @ Rear Disc Brake Inner Pad - Install
- Have an assistant apply the brakes.
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
Rear Wheel Drive Shaft Nut (1) - Install NEW and tighten - Fastener Specifications
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Refer to Fastener Caution .
Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminates should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor, which could lead to brake pulsation.
