Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Some components shown transparent for graphic clarity.

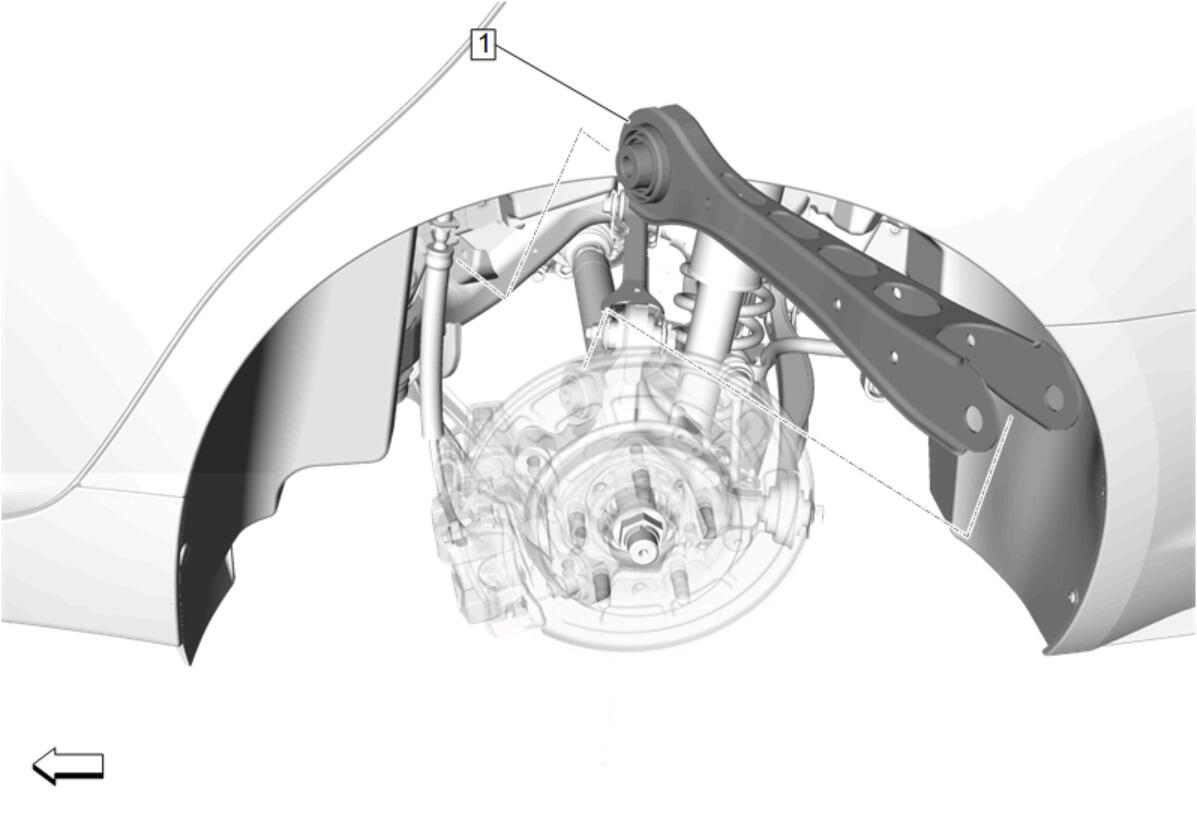

Rear Suspension Upper Trailing Link (1) - Install
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

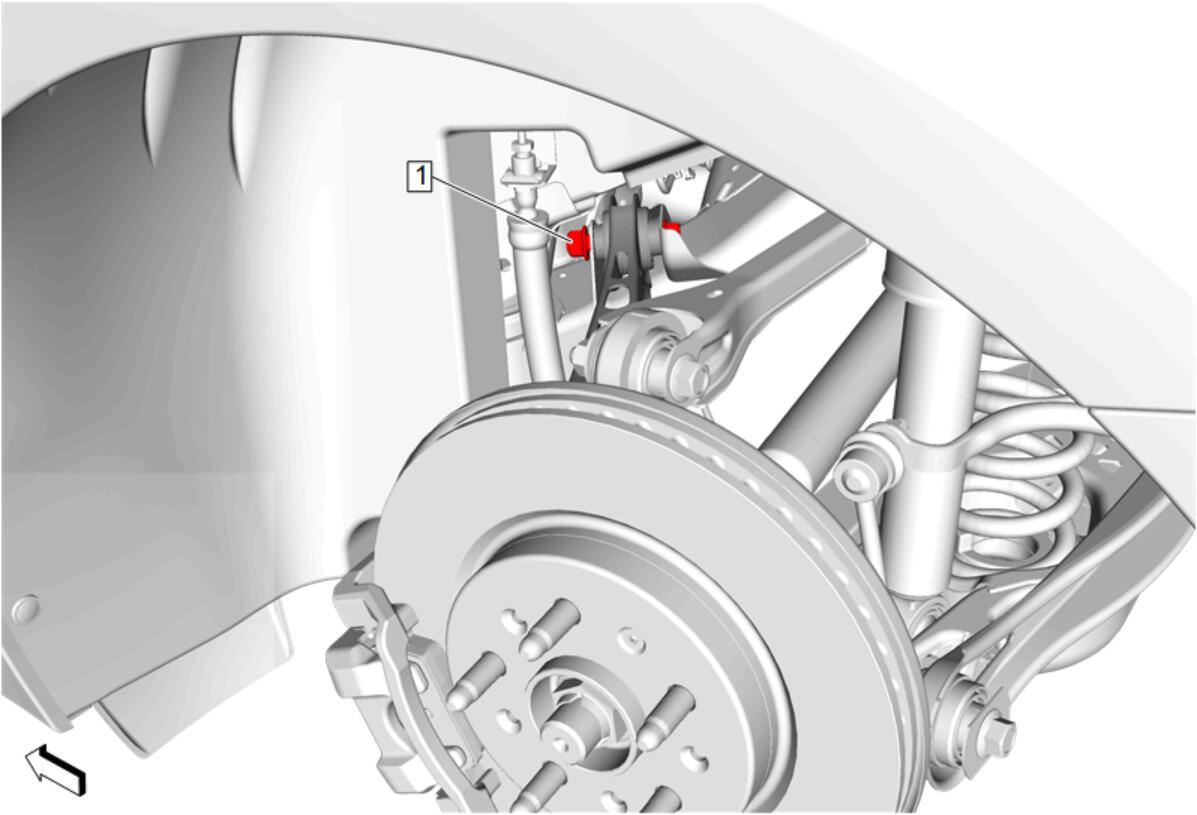

Rear Suspension Trailing Arm Bracket Bolt (2) - Install NEW
- Rear Suspension Trailing Arm Bracket Nut (1) - Install, but do NOT tighten
- NOTE:
Some components shown transparent for graphic clarity.

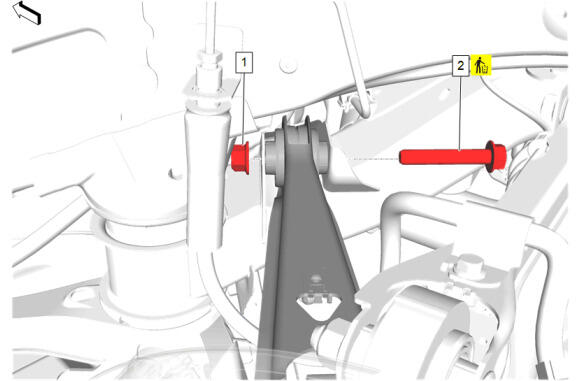

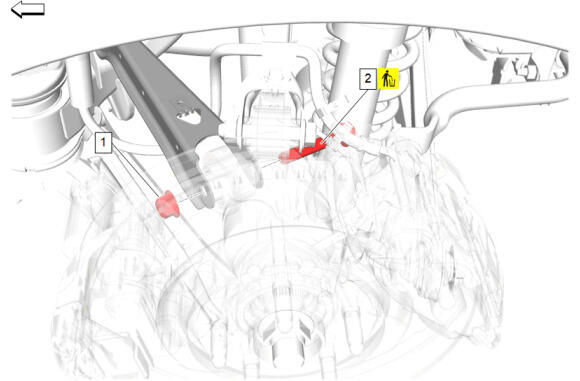

Rear Suspension Trailing Arm Bolt (2) - Install NEW
- Rear Suspension Trailing Arm Nut (1) - Install
- Remove the jack stand from under the rear suspension knuckle
- Rear Suspension Trailing Arm Bolt (2) - Tighten - Fastener Specifications
Rear Suspension Trailing Arm Bracket Nut (1) - Tighten - Fastener Specifications
Rear Brake Hose Clip Bolt (2) - Install and tighten - Fastener Specifications

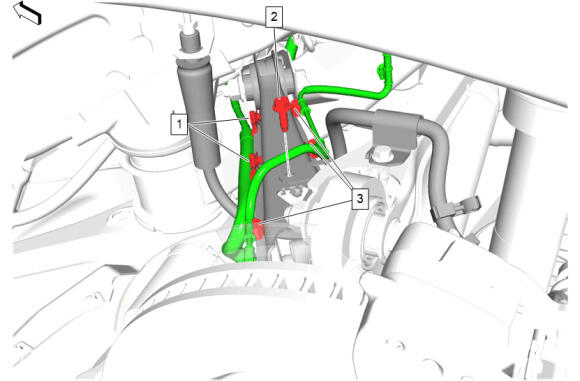

- Position the chassis harness and install the 2 chassis harness wire harness retainers (1).
- Position the electronic suspension rear vertical accelerometer harness and install the 3 electronic suspension rear vertical accelerometer retainers (3).
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
