Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Rear Suspension Upper Control Arm (1) - Install
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

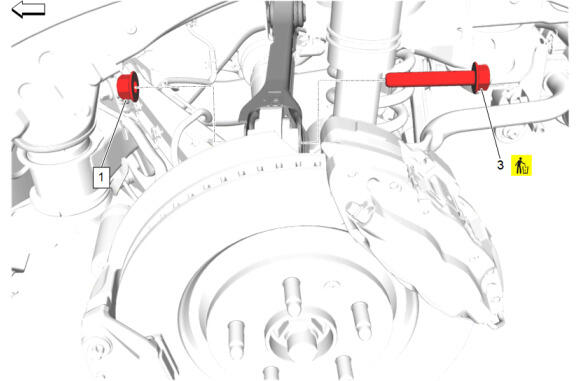

Rear Suspension Upper Control Arm Outer Bolt (3) - Install NEW
- Rear Suspension Upper Control Arm Outer Nut (1) - Install, but do NOT tighten

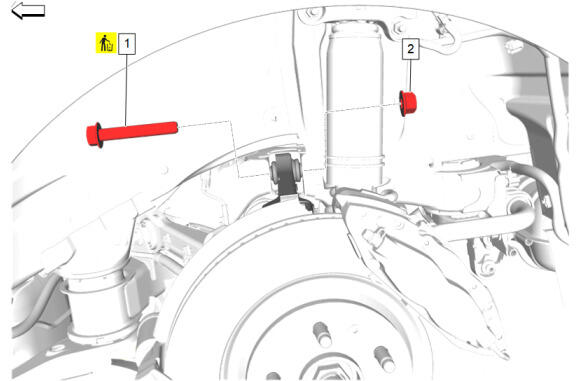

Rear Suspension Upper Control Arm Inner Bolt (1) - Install NEW
- Rear Suspension Upper Control Arm Inner Nut (2) - Install and tighten - Fastener Specifications

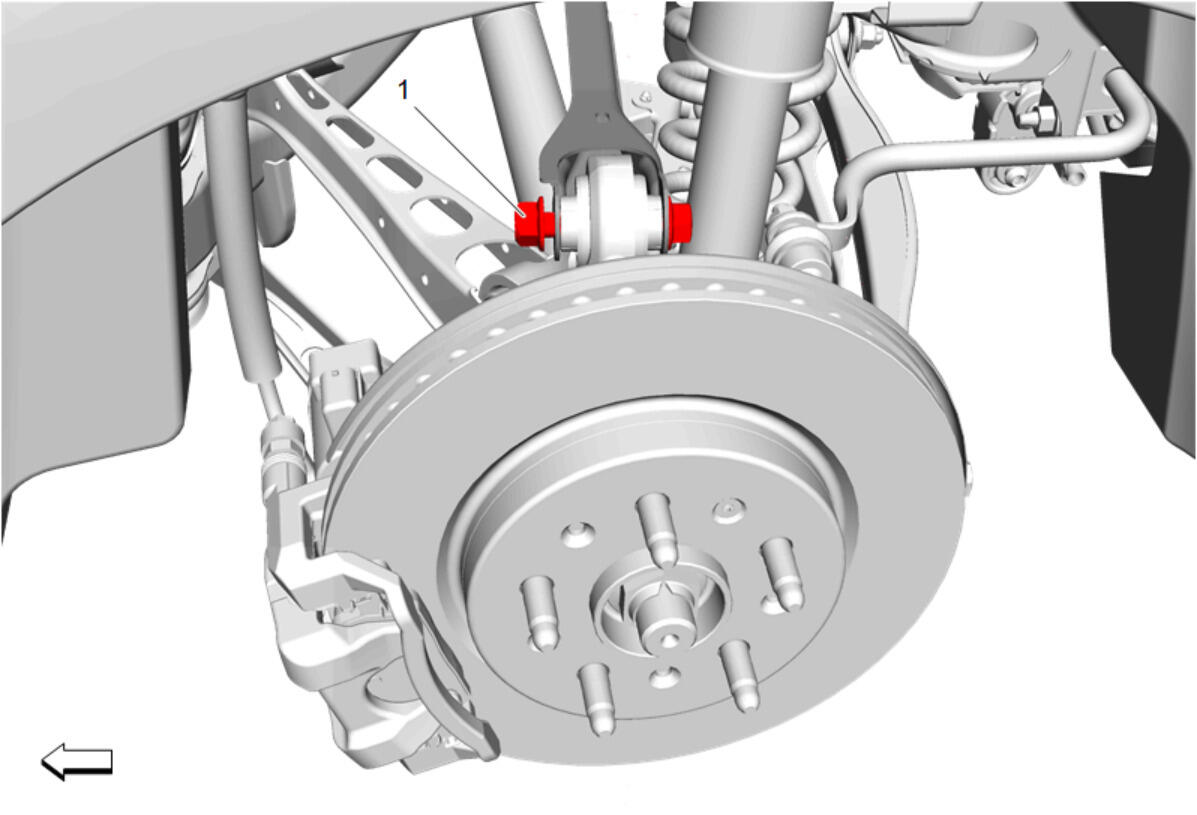

Rear Suspension Upper Control Arm Outer Nut (1) - Tighten - Fastener Specifications

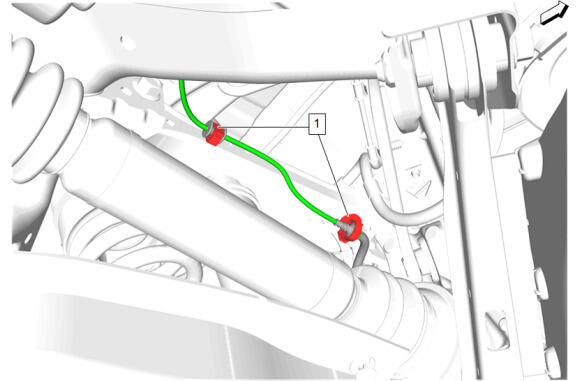

Install the 2 rear wheel speed sensor harness retainers (1) to the rear suspension upper control arm.

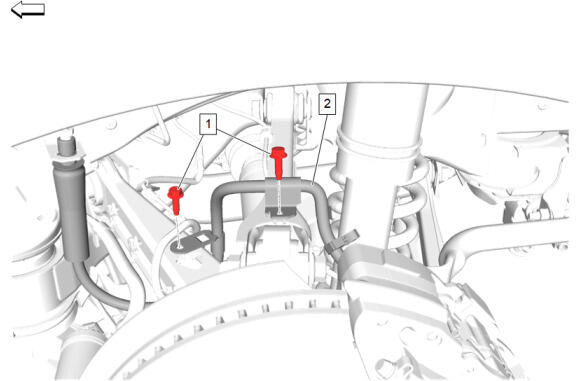

Position the rear brake line (2).
- Rear Brake Hose Clip Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
