Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

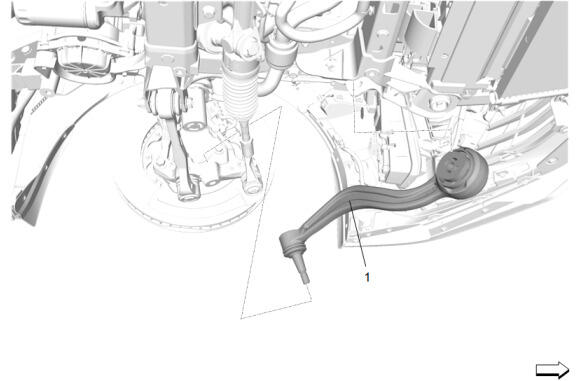

Front Lower Control Front Link (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

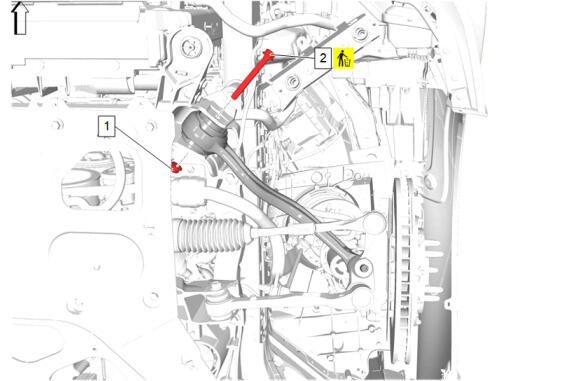

Front Lower Control Arm Front Bolt (2) - Install NEW
Front Lower Control Arm Front Nut (1) - Install

CAUTION:

Refer to Fastener Caution .

Front Lower Control Arm Front Bolt (2) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT allow the ball stud to rotate while tightening the nut.

Front Lower Control Arm Ball Stud Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the left side charge air cooler assembly (1) to the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Bracket Bolt (2) - Install and tighten [3x] - Fastener Specifications
Charge Air Cooler Upper Bracket Nut (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the retainer (1) into the auxiliary water pump outlet upper hose connector.
Install the auxiliary water pump outlet upper hose (2) to the left side charge air cooler ensuring that the retainer (1) is fully engaged.
Radiator Outlet Hose Clip (3) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the retainer (1) into the auxiliary radiator outlet hose connector.
Install the auxiliary radiator outlet hose (2) to the left side charge air cooler ensuring that the retainer (1) is fully engaged.
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Front Duct- Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Impact Bar (2) - Install
Front Bumper Impact Bar Bolt (1) - Install and tighten [8x] - Fastener Specifications
Install the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Horn- Left Side and Right Side (2) - Install [2x]
Horn Bolt- Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Transmission Fluid Auxiliary Cooler Bracket Bolt- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
Auxiliary Radiator Front Inlet Duct- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

{ If equipped } Forward Range Radar Bracket (2) - Install
{ If equipped } Forward Range Radar Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications
{ If equipped } Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer- Left Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer- Left Side (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Rear Duct- Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer- Left Side (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

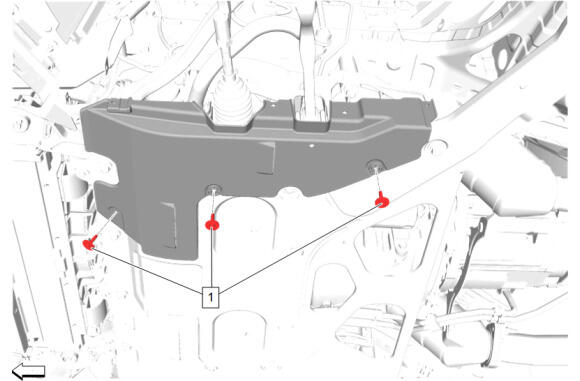

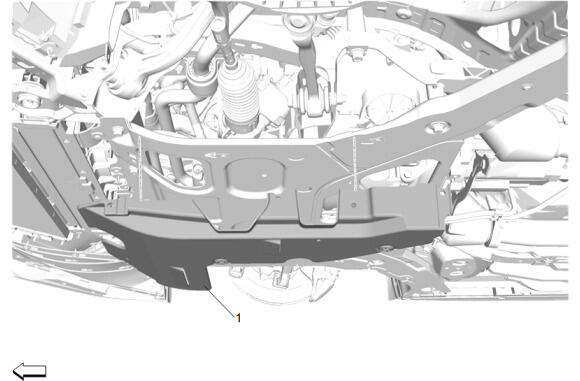

Front Compartment Lower Noise Shield (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner- Left Side (3) - Move into position
Front Wheelhouse Liner Retainer- Left Side (2) - Install
Front Wheelhouse Liner Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Quantity of fasteners may vary based on option content.
- Some components not shown for graphic clarity.
Engine Front Splash Shield- Left Side (3) - Install
Engine Front Splash Shield Bolt- Left Side (1) - Install and tighten [4x] - Fastener Specifications
Engine Front Splash Shield Retainer- Left Side (2) - Install
Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector- Outer (2) - Install
Front Bumper Fascia Air Deflector Bolt- Left Side (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Lower Reinforcement- Left Side (2) - Install
Front Bumper Fascia Air Deflector Bolt- Left Side (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector Bolt- Left Side (3) - Install and tighten [4x] - Fastener Specifications
Front Bumper Fascia Lower Stiffener Bolt- Left Side (2) - Install and tighten - Fastener Specifications
Front Bumper Fascia Bolt- Left Side (1) - Install and tighten - Fastener Specifications [6x]
Courtesy of GENERAL MOTORS COMPANY

Front Brake Rotor Cooling Duct Deflector (1) - Install
Front Brake Rotor Cooling Duct Deflector Bolt (2) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the 2 chassis harness retainers (1).
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
Fill the cooling system to the proper level. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
Start the engine and check for coolant leaks.
