Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Using the CH-42450-A Wheel Hub Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange.
- Using the CH-41013 Rotor Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface and mounting surface of the brake rotor.
- Inspect the mating surfaces of the hub/axle flange and the rotor to ensure there are no foreign particles or debris remaining.

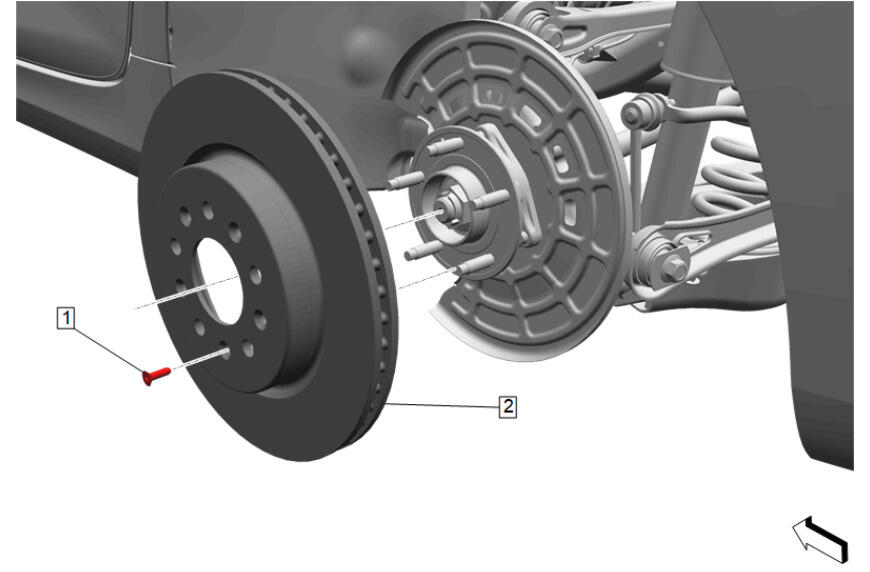

Rear Brake Rotor (2) - Install
- Rear Brake Rotor Bolt (1) - Install and tighten - Fastener Specifications
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.

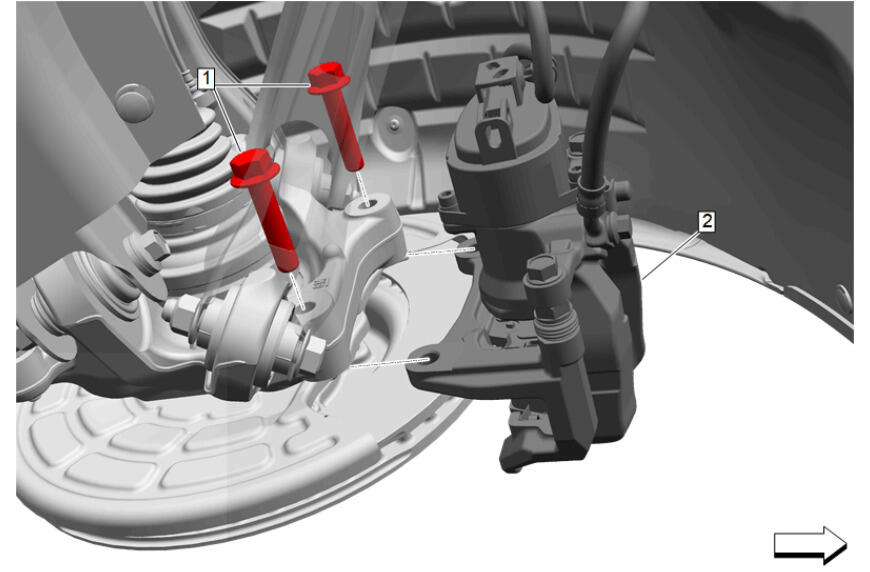

Install the rear brake caliper and bracket (2).
- Rear Brake Caliper Bracket Bolt (1) - Install [2x] - Fastener Specifications
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Calibrate the park brake. Park Brake Calibration
- Burnish the brake pads and rotors.
- Select a smooth road with little or no traffic.
- Accelerate the vehicle to 48 km/h (30 mph).
- Using moderate to firm pressure, apply the brakes to bring the vehicle to a stop. Do not allow the brakes to lock.
- Repeat steps 2 and 3 until approximately 20 stops have been completed. Allow sufficient cooling periods between stops in order to properly burnish the brake pads and rotors.
NOTE:Use care to avoid overheating the brakes while performing this step.
NOTE:
Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminates should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor, which could lead to brake pulsation.
CAUTION:
Refer to Fastener Caution .
