Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

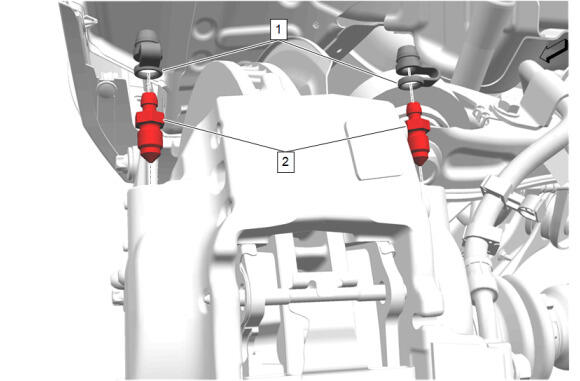

  1. GM5876653Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Bleeder Valve (2) - Install and tighten [2x] - Fastener Specifications

  2. Rear Brake Bleeder Valve Cap (1) - Install [2x]
  3. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  4. Check for brake system leaks.
  5. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  6. Remove the support and lower the vehicle.
