Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a suitable tool to compress the front brake caliper pistons into the front brake caliper.
  2. Apply approximately 0.09 - 0.15 g (0.003 - 0.005 oz)  of anti-seize lubricant to each end of the disc brake pad abutments which contact the brake caliper. Adhesives, Fluids, Lubricants, and Sealers

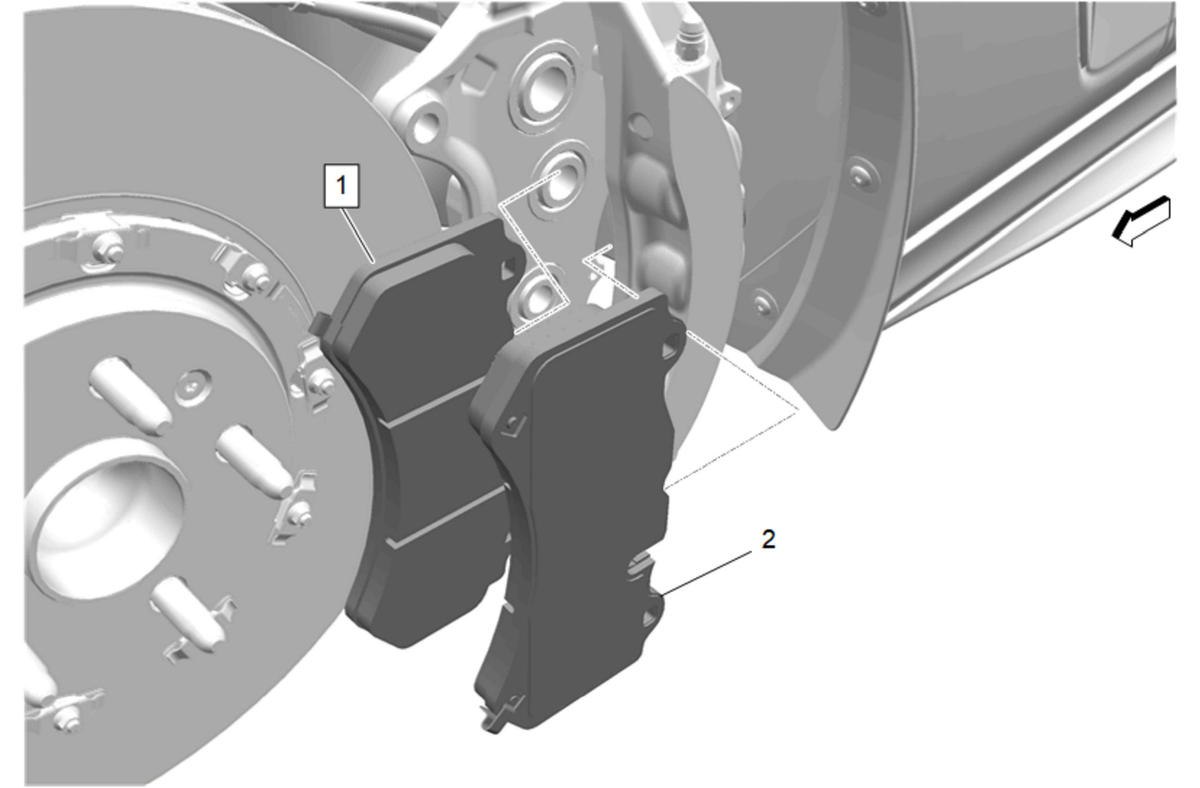

  3. GM5875817Courtesy of GENERAL MOTORS COMPANY

    Front Disc Brake Outer Pad (2) - Install

  4. Front Disc Brake Inner Pad (1) - Install

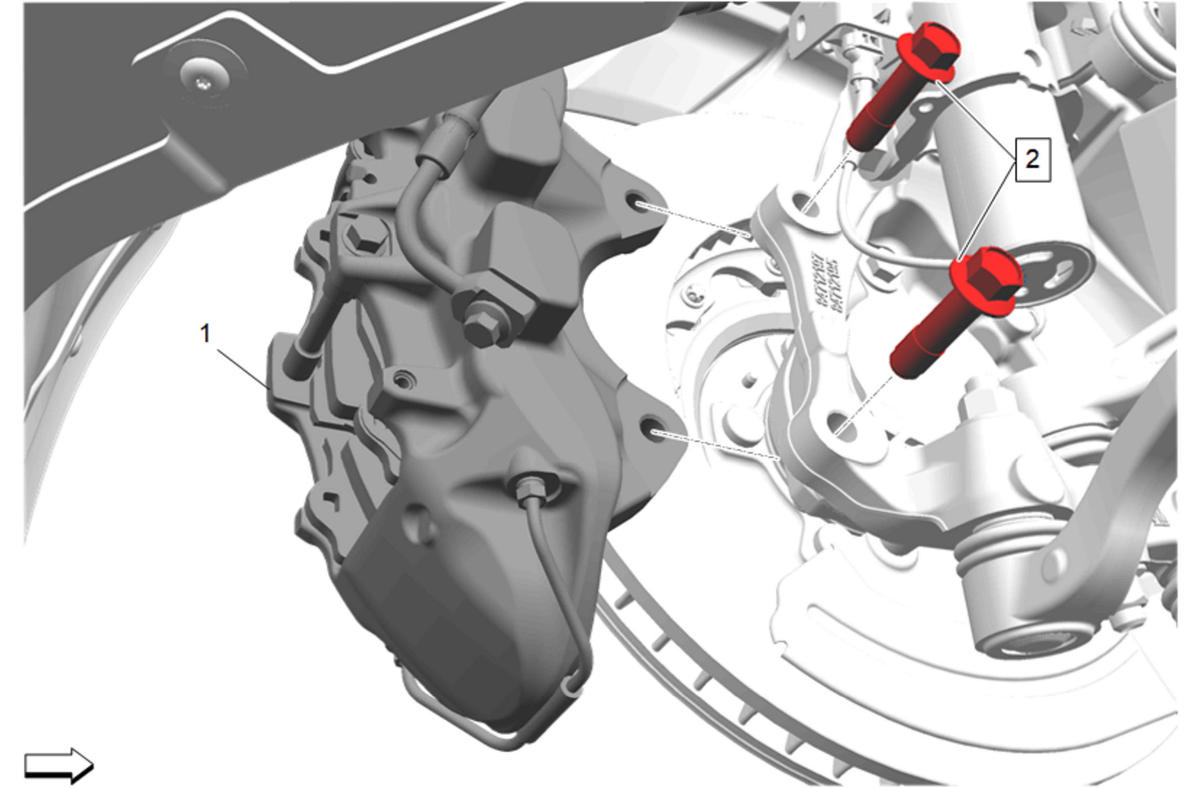

  5. GM5875815Courtesy of GENERAL MOTORS COMPANY

    Front Brake Caliper (1) - Install

  6. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
    7. CAUTION:

    Fastener Caution

  7. Front Brake Caliper Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  8. GM5875809Courtesy of GENERAL MOTORS COMPANY

    Front Brake Caliper Spring (2) - Install

  9. Front Brake Caliper Guide Pin (1) - Install [2x]
  10. GM5875826Courtesy of GENERAL MOTORS COMPANY

    Front Disc Brake Pad Wear Sensor (1) - Install

  11. GM5875827Courtesy of GENERAL MOTORS COMPANY

    Reposition the wheelhouse liner as necessary.

  12. Electrical Connector (1) @ Retainer (2) - Install
  13. Connect the electrical connector. (1)
  14. Retainer (3) - Engage [3x]
  15. GM5875828Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Engage [2x]

  16. Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation
  17. Remove the support and lower the vehicle.
  18. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  19. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
  20. Slowly release the brake pedal.
  21. Wait 15 seconds, then repeat steps 19 - 20 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
  22. Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
  23. Using a scan tool, relearn the front disc brake pad wear sensor.
  24. Burnish the brake pads and rotors.
    1. Select a smooth road with little or no traffic.
    2. Accelerate the vehicle to 48 km/h (30 mph).
      3. NOTE:

      Use care to avoid overheating the brakes while performing this step.

    3. Using moderate to firm pressure, apply the brakes to bring the vehicle to a stop. Do not allow the brakes to lock.
    4. Repeat steps 24.2 and 24.3 until approximately 20 stops have been completed. Allow sufficient cooling periods between stops in order to properly burnish the brake pads and rotors.
