Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

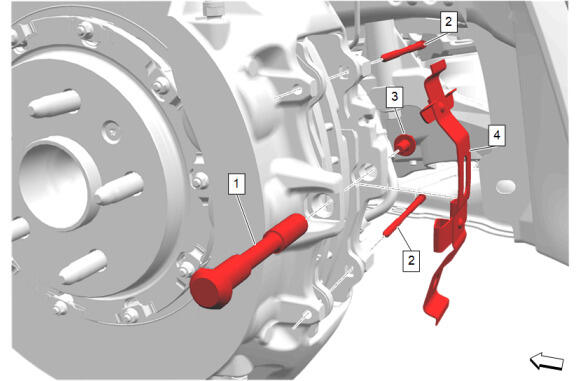

Front Brake Caliper Guide Pin (1) - Install
- Front Brake Caliper Guide Pin Bolt (3) - Install and tighten - Fastener Specifications
- Front Brake Caliper Spring (4) - Install
- Front Brake Caliper Guide Pin (2) - Install [2x]
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
