Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

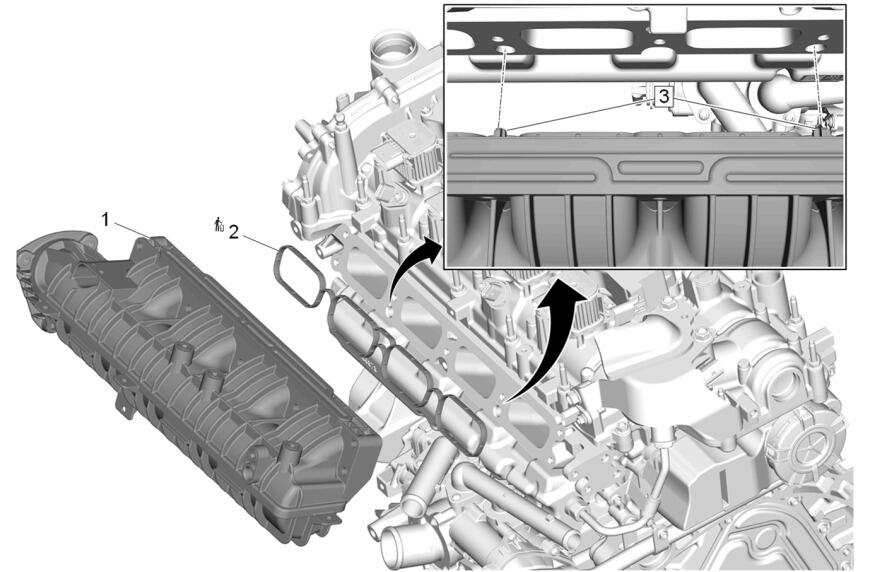

Intake Manifold Gasket (2) - Install NEW

NOTE:

Check that the 2 pins (3) of the intake manifold are seated correctly in the cylinder head.

Intake Manifold (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Bolt (1) - Install [7x]

CAUTION:

Refer to Fastener Caution .

Intake Manifold Bolt (1) - Tighten in sequence [7x]
1. First Pass: 5 N.m (44 lb in)
2. Final Pass: 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Retainer (2) - Connect
Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Pipe Bracket (2) - Reposition
Engine Wiring Harness Conduit Nut (1) - Install and tighten to 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Connect [3x]
Oil Level Indicator Tube - Install - Oil Level Indicator Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister Purge Pump (2) - Install - Evaporative Emission Canister Purge Pump Replacement
Throttle Body Assembly - Install - Throttle Body Assembly Replacement
Intake Manifold Cover - Install - Intake Manifold Cover Replacement
