Throttle Body Assembly Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

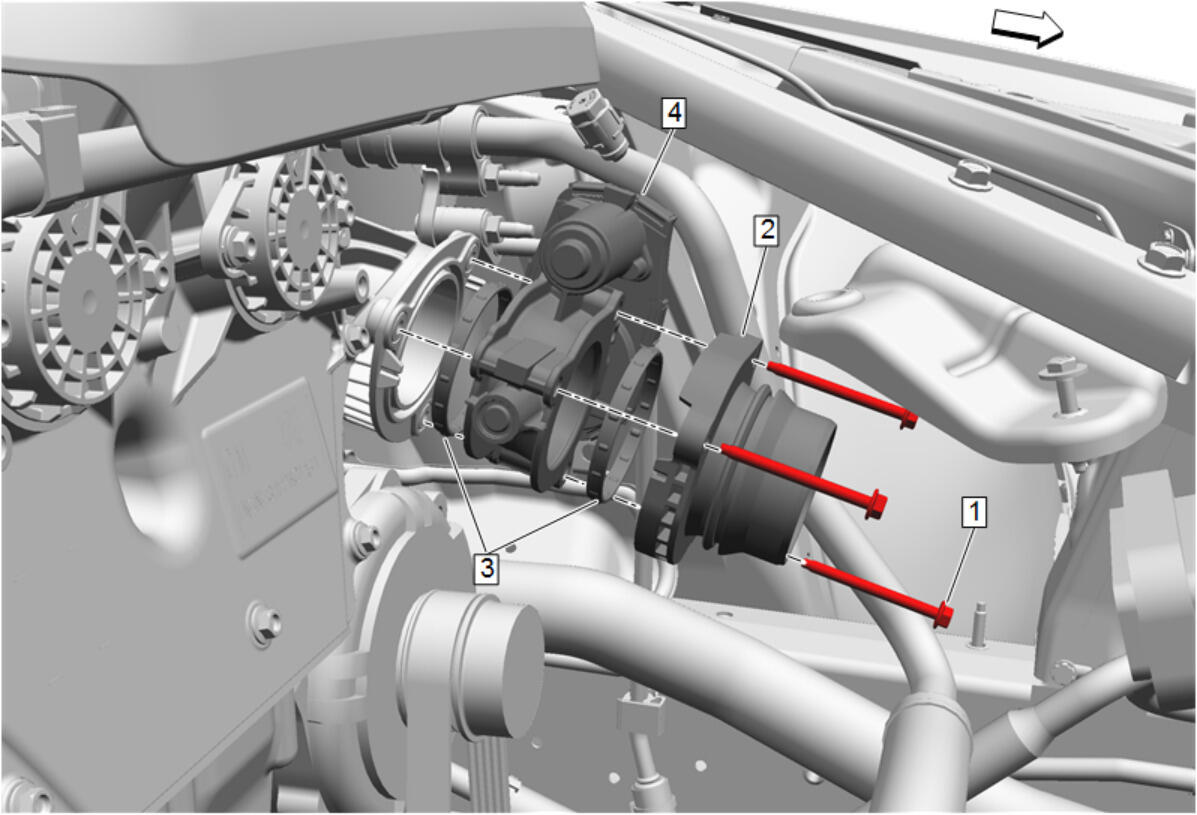

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Charge Air Cooler Outlet Air Tube Replacement |
|
| 1 | Throttle Body Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in) |
| 2 | Throttle Body Adapter |
| 3 | Throttle Body Seal [2x] |
| 4 | Throttle Body Procedure
|
