Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Apply Structural foam 3M™ NVH Dampening Material or equivalent to the front compartment side rail baffle (1).
Courtesy of GENERAL MOTORS COMPANY

Front Fender(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Fender Bolt(1) - Tighten9 N.m (80 lb in)
Front Fender Bolt(2) - Install and tighten [2x] 9 N.m (80 lb in)
Headlamp Bolt(3) - Install - Front Headlamp Replacement (With T87) , or Front Headlamp Replacement (Without T87) , or Front Headlamp Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Fender Bolt(1) - Install and tighten [5x] 9 N.m (80 lb in)
Front Fender Nut(2) - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

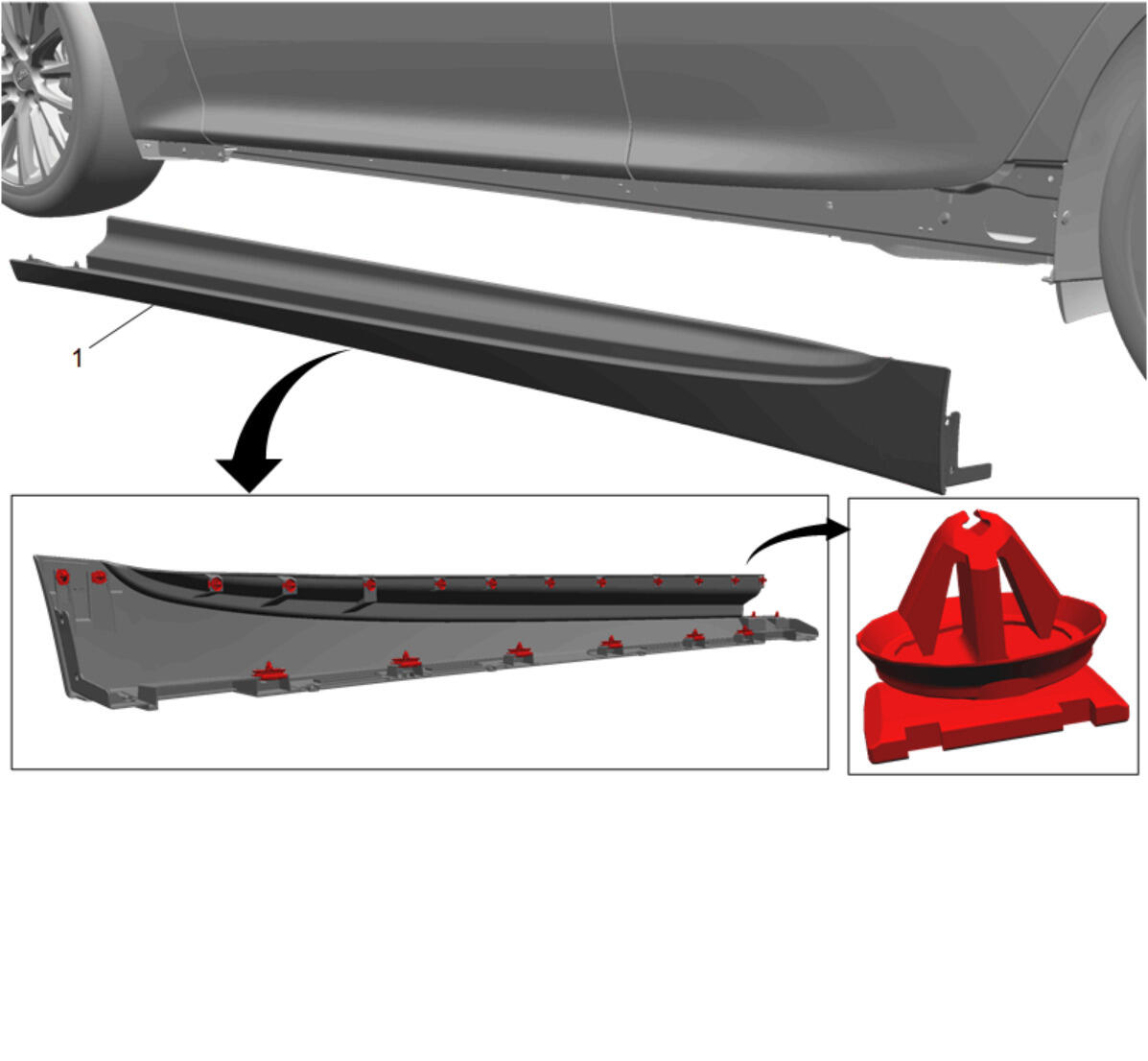

Rocker Panel Molding(1) - Install - Rocker Panel Molding Replacement , or Rocker Panel Molding Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Guide(3) - Install - Front Bumper Fascia Guide Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia(1) - Install - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)
Install the appropriate front fender insulator :
- For left side, refer to Front Fender Insulator Replacement - Left Side .
- For right side, refer to Front Fender Insulator Replacement - Right Side .
Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)
Air Inlet Grille Panel Extension - Left Side - Install - Air Inlet Grille Panel Extension Replacement - Left Side
Air Inlet Grille Panel Extension - Right Side - Install - Air Inlet Grille Panel Extension Replacement - Right Side , or Air Inlet Grille Panel Extension Replacement - Right Side (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Side Sight Shield(2) - Install - Front Compartment Side Sight Shield Replacement (without Blackwing) , or Front Compartment Side Sight Shield Replacement (with Blackwing)
