Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia(1) - Remove - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Extension - Left Side(1) - Remove - Air Inlet Grille Panel Extension Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

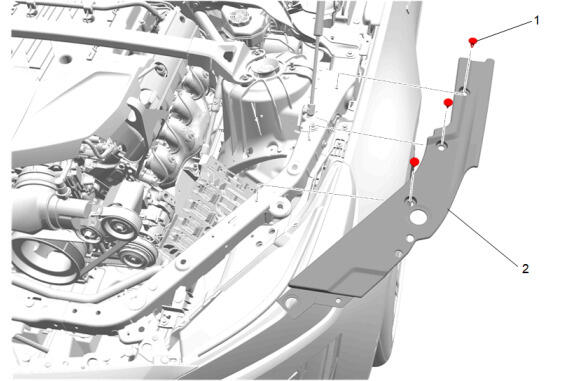

Front Compartment Side Sight Shield(2)Remove - Front Compartment Side Sight Shield Replacement (without Blackwing) , or Front Compartment Side Sight Shield Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

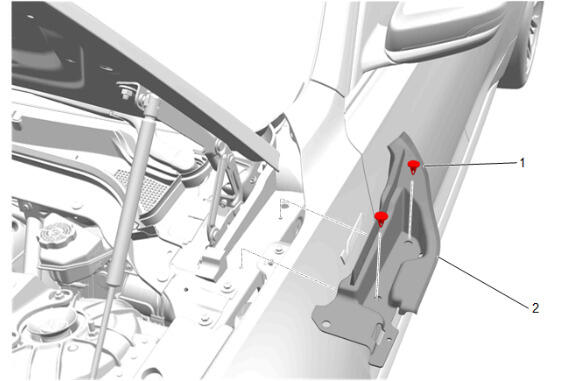

Front Compartment Side Sight Shield- Front(2)Remove - Front Compartment Side Sight Shield Replacement - Front (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

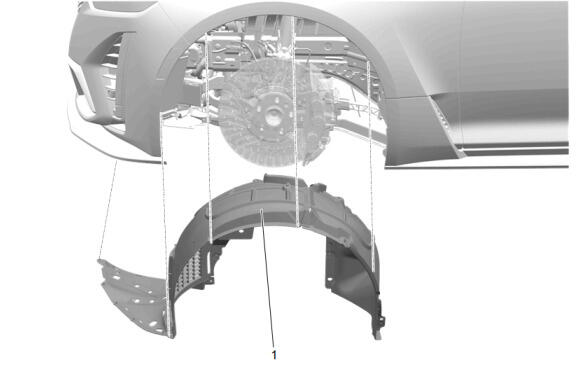

Front Wheelhouse Liner(1) - Remove - Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Fender InsulatorLeft Side(2) - Remove - Front Fender Insulator Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Guide(3) - Remove - Front Bumper Fascia Guide Replacement
Courtesy of GENERAL MOTORS COMPANY

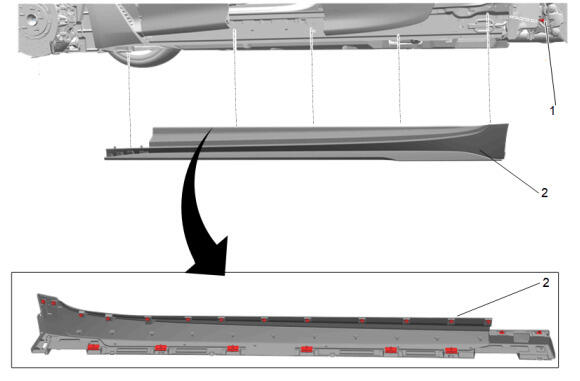

Rocker Panel Molding(2) - Remove - Rocker Panel Molding Replacement , or Rocker Panel Molding Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Fender Bolt(1) - Remove [2x]
Headlamp Bolt(2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Apply a double layer of masking tape to the windshield to prevent damaging the windshield.
Front Fender Bolt(1) - Remove [6x]
Front Fender Nut(2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Fender- Left Side - Remove
