Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5295240Courtesy of GENERAL MOTORS COMPANY

    Radio Front Side Door Speaker (2) - Remove - Radio Front Side Door Speaker Replacement

  2. GM5314209Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window (1) - Remove - Front Side Door Window Replacement

  3. GM5312757Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Upper Reveal Molding (1) - Remove - Front Side Door Window Upper Reveal Molding Replacement

  4. GM5312683Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Rear Applique (2) - Remove - Front Side Door Window Frame Rear Applique Replacement

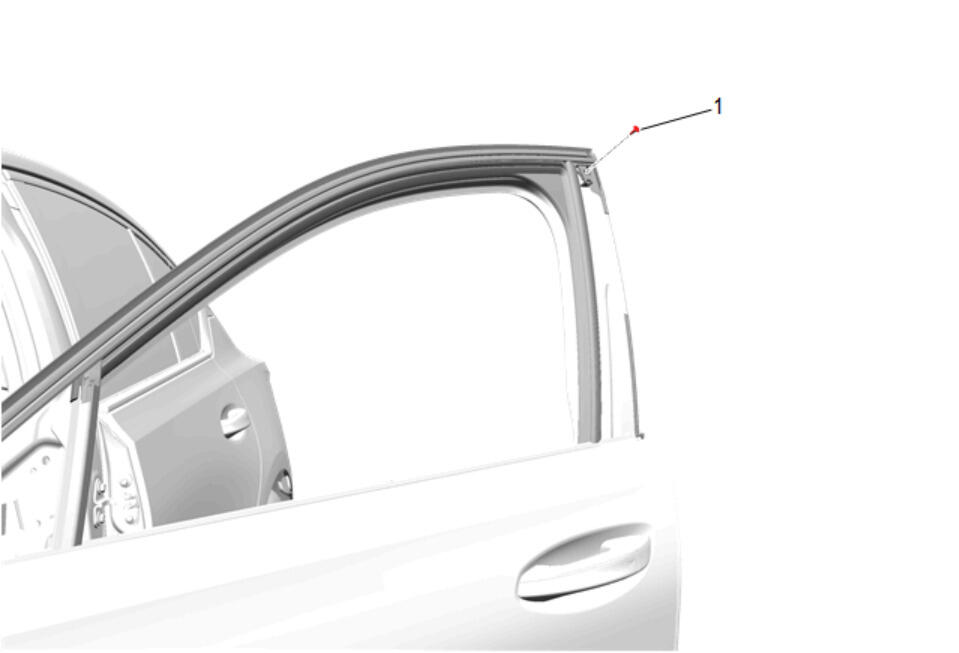

  5. GM5314654Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Weatherstrip Bolt (1) - Remove

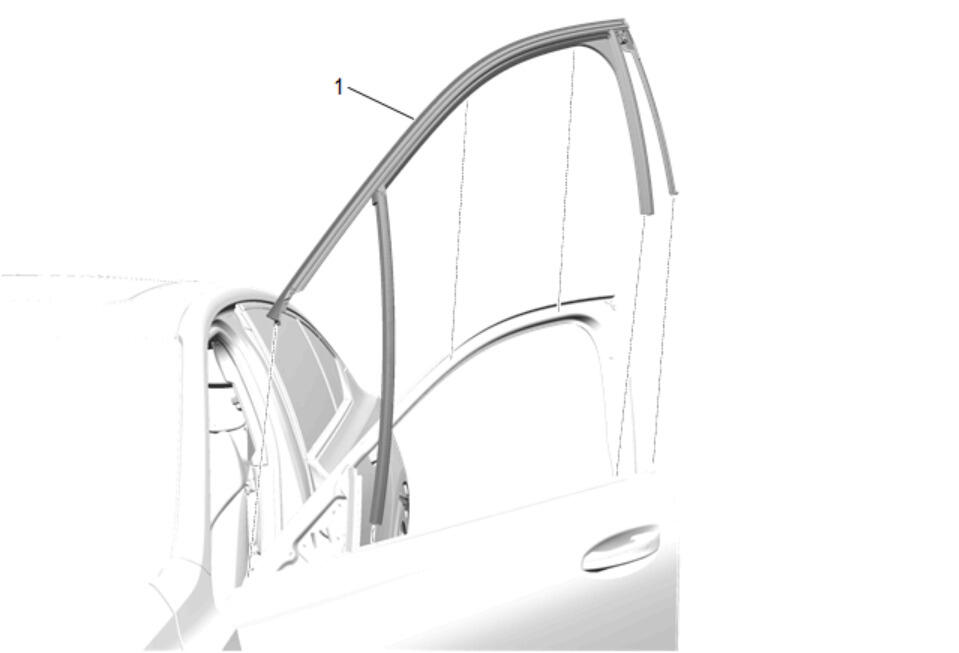

  6. GM5314659Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Weatherstrip (1) - Remove
