Front Side Door Window Upper Reveal Molding Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

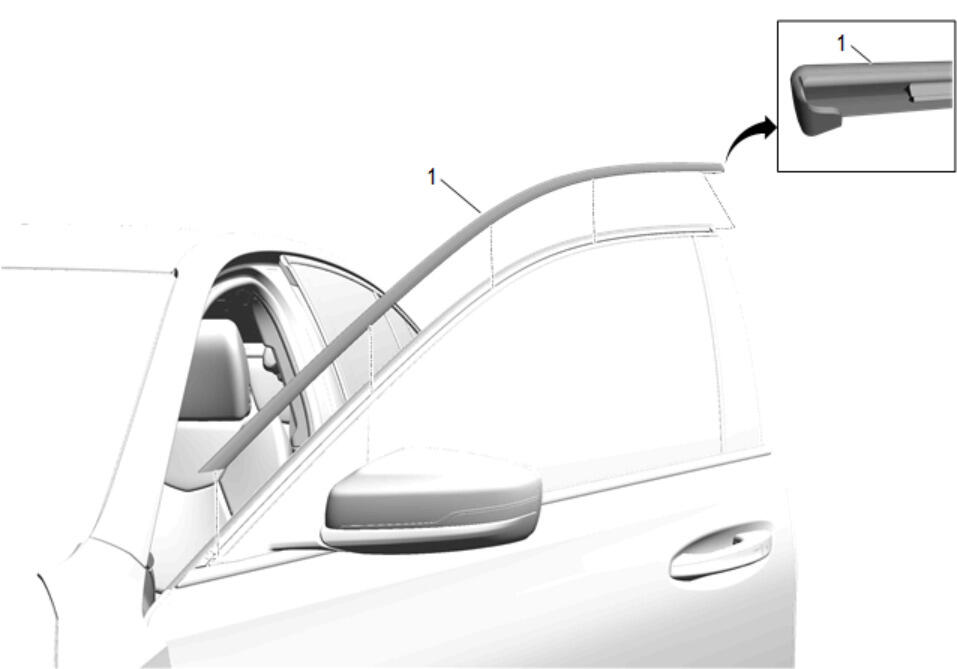

| Callout |
Component Name |
| 1 |
Front Side Door Window Upper Reveal Molding
Procedure
Using the appropriate tool, release the upper reveal molding at the front working to the rear of the front side door. Slide molding rearward to release the hook clip from the rear corner of the front side door. |
