Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Remove the right side front wheelhouse panel (3). Front Wheelhouse Liner Replacement Front Wheelhouse Liner Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement (without Blackwing) Front Bumper Fascia Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Impact Bar (3) - Remove - Front Bumper Impact Bar Replacement (LSY) Front Bumper Impact Bar Replacement (LGY) Front Bumper Impact Bar Replacement (with Blackwing)
Remove the right side front end sheet metal cross brace at the impact bar bracket. Front End Sheet Metal Cross Brace Replacement (Impact Bar Bracket)Front End Sheet Metal Cross Brace Replacement (Plenum without Blackwing)Front End Sheet Metal Cross Brace Replacement (Plenum with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Remove Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct (1) - Remove - Intake Air Duct Replacement
Reposition the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

Remove the right side lower front compartment front panel bolt (1). Front Compartment Front Panel Replacement (LSY)Front Compartment Front Panel Replacement (LGY)Front Compartment Front Panel Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

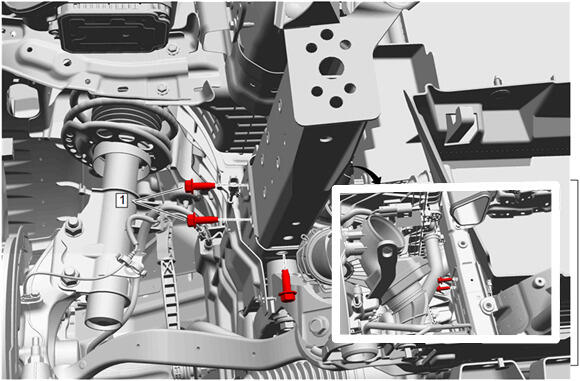

Front Bumper Energy Absorber Bolt (1) - Remove [5x]
Courtesy of GENERAL MOTORS COMPANY

Slide the front bumper energy absorber (1) out from the front compartment side rail.
