Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Bumper Energy Absorber (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

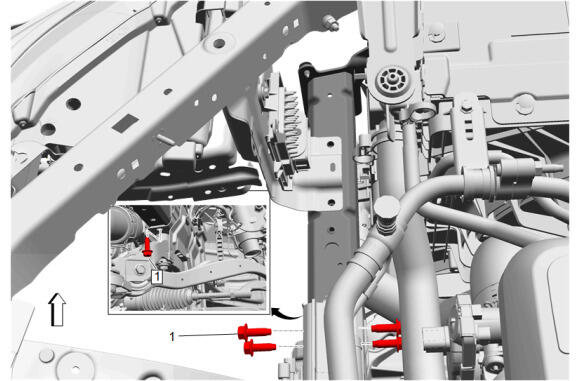

Front Bumper Energy Absorber Bolt (1) - Install [5x] tighten 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Install the left side lower front compartment front panel bolt (1). Front Compartment Front Panel Replacement (LSY)Front Compartment Front Panel Replacement (LGY)Front Compartment Front Panel Replacement (LT4)
Position the wiring harness.
Connect the transmission control module (TCM) electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Engine Control Module Bracket (1) - Install - Engine Control Module Bracket Replacement
Engine Wiring Harness Fuse Block Bracket - Install - Engine Wiring Harness Fuse Block Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Front Upper Baffle (1) - Install - Radiator Air Front Upper Baffle Replacement - Left Side (LSY)
Courtesy of GENERAL MOTORS COMPANY

Install the left side front end sheet metal cross brace at the impact bar bracket. Front End Sheet Metal Cross Brace Replacement (Impact Bar Bracket)Front End Sheet Metal Cross Brace Replacement (Plenum without Blackwing)Front End Sheet Metal Cross Brace Replacement (Plenum with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Impact Bar (3) - Install - Front Bumper Impact Bar Replacement (LSY) Front Bumper Impact Bar Replacement (LGY) Front Bumper Impact Bar Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Install the left side front wheelhouse panels (3). Front Wheelhouse Liner Replacement Front Wheelhouse Liner Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement (without Blackwing) Front Bumper Fascia Replacement (with Blackwing)
