Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Side Door Trim Panel Applique - Remove - Rear Side Door Trim Panel Applique Replacement
- Rear Side Door Inside Handle - Remove - Rear Side Door Inside Handle Replacement

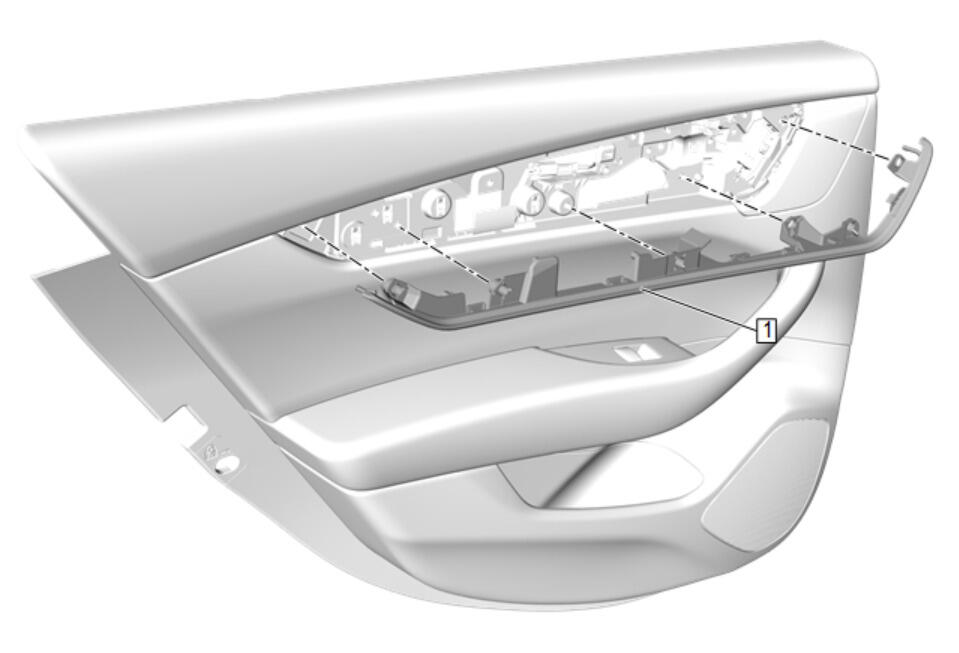

Remove the rear side door armrest applique (1) from the rear side door trim.
Release the retaining tabs.

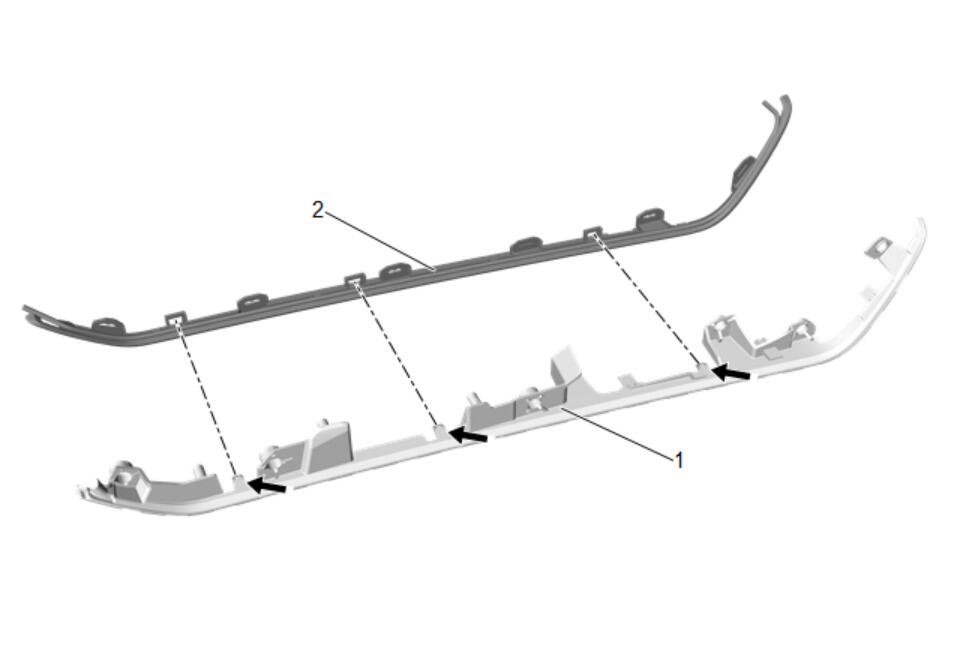

- Remove the rear side door light conductor lamp (2) from the rear side door armrest applique (1).
- Transfer components as necessary.
