Rear Side Door Trim Panel Applique Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

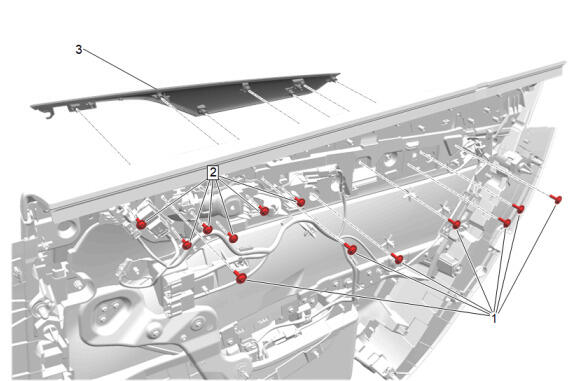

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Side Door Trim Replacement |
|
| 1 | Rear Side Door Trim Bolt [7x]
CAUTION:
Refer to: Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Side Door Trim Bolt [6x] Procedure Loosen the Rear Side Door Trim Bolts so that the Rear Side Door Trim Panel Applique can be removed. Tighten 2.5 N.m (22 lb in) |
| 3 | Rear Side Door Trim Panel Applique
NOTE:
Reposition insulator, as required. Procedure Using a flat-bladed plastic trim tool, start at the rear of the door trim panel applique and gently insert trim tool to lift the rear side door trim panel applique from the door trim. Pull rearward to disengage hook on the front of the rear side door trim panel applique. |
