Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

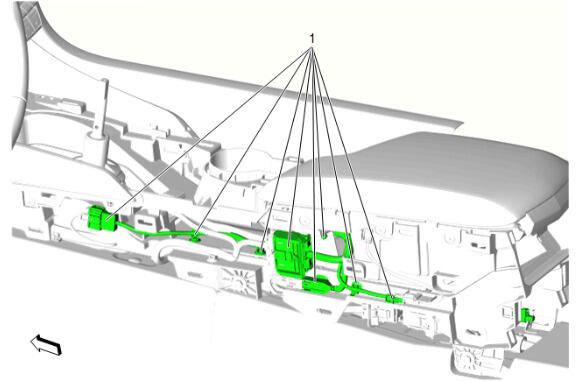

  1. GM5873822Courtesy of GENERAL MOTORS COMPANY

    Install the wiring harness clips and connectors of the front floor console wiring harness (1) to the front floor console.

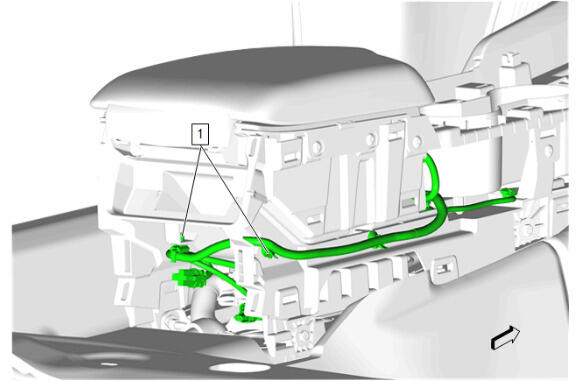

  2. GM5873821Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Wiring Harness (1) - Install

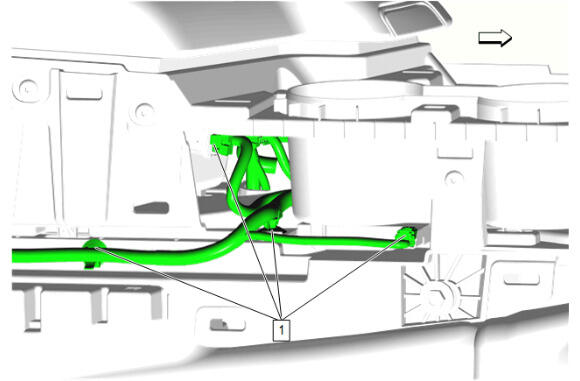

  3. GM5873820Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Wiring Harness (1) - Install

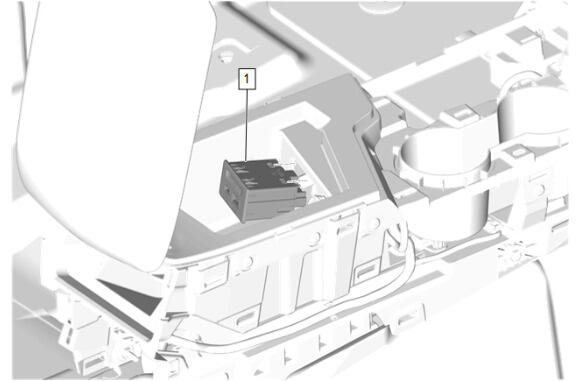

  4. GM5873819Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Multimedia Receptacle (1) - Install
  6. GM5868342Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  7. GM5868339Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  8. GM5867046Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  9. Front Floor Console Rear Trim Panel (1) - Install
  10. GM5868026Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  11. Front Floor Console Trim Plate (1) - Install
  12. GM5868061Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  13. Position the transmission control lever boot and knob assembly (1, 2) on the manual transmission control lever.
  14. Manual Transmission Control Lever Knob Bolt (3) - Install and tighten - Fastener Specifications .
  15. Install the manual transmission control lever boot (2) to the console.
  16. Return the seat to its original position.
