Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

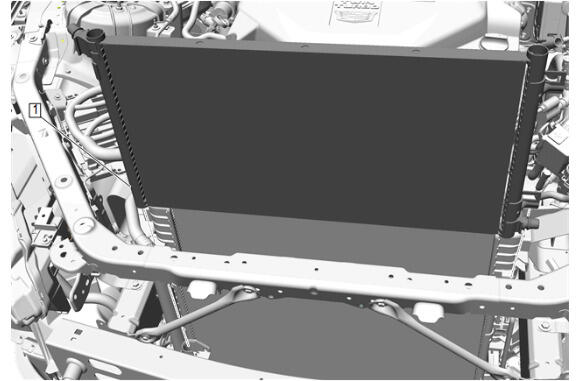

  1. GM5542122Courtesy of GENERAL MOTORS COMPANY

    Engine Radiator (1) - Install

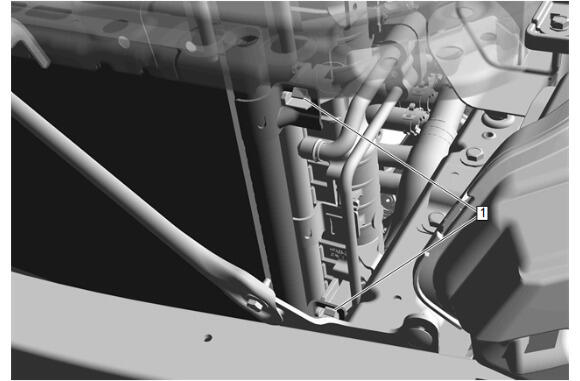

  2. GM5542105Courtesy of GENERAL MOTORS COMPANY

    Fasten the engine radiator to the engine radiator detents (1).

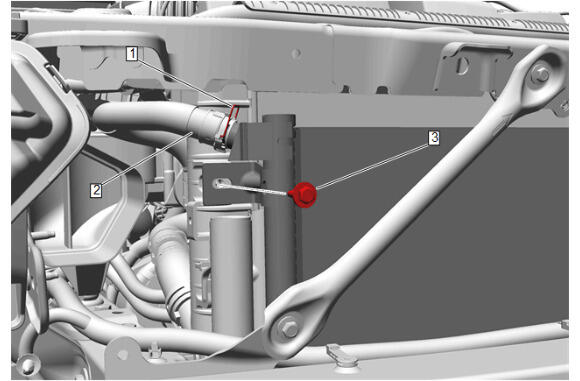

  3. GM5542100Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Radiator Upper Bracket Bolt (3) - Install and tighten 6 N.m (53 lb in)

  4. Charge Air Cooler Coolant Hose (2) - Install
  5. Charge Air Cooler Coolant Hose Retainer (1) - Engage

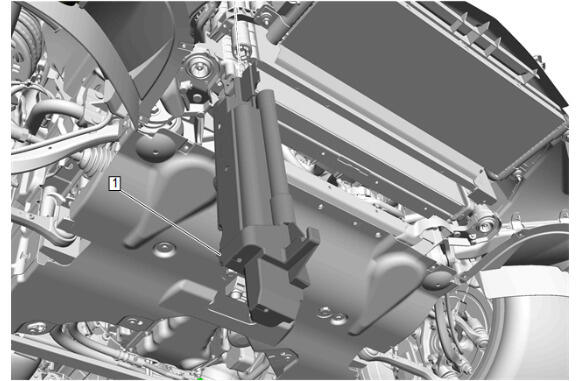

  6. GM5541041Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle - Right Side (1) - Install

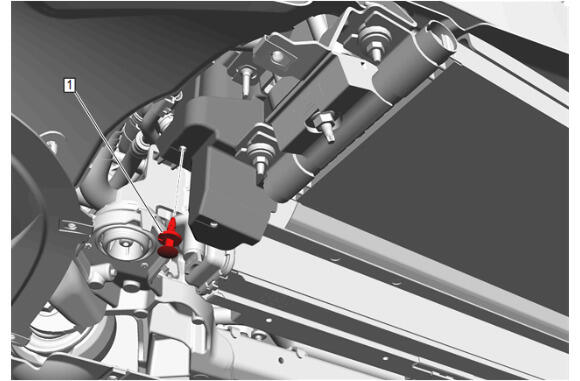

  7. GM5541033Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle Retainer (1) - Install

  8. GM5541505Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle - Left Side (1) - Install

  9. GM5541504Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle Retainer (1) - Install [2x]

  10. GM5541506Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Outlet Hose Retainer (1) - Engage

  11. Auxiliary Radiator Outlet Hose (2) - Install

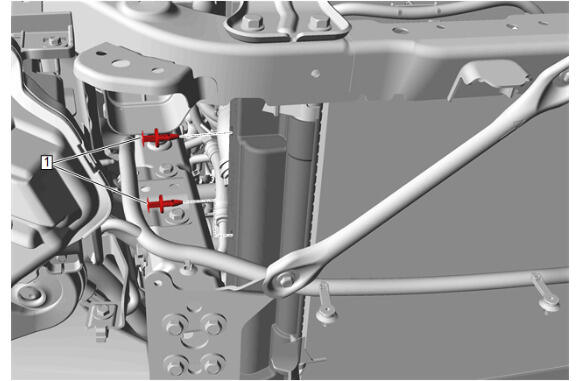

  12. GM5527986Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle Retainer (1) - Install [2x]

  13. GM5313404Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket- Right Side (3) - Install

    14. NOTE:

    Refer to the procedure link for torque specification.

  14. Radiator Upper Bracket Bolt (2) - Install and tighten [2x] - Radiator Upper Bracket Replacement - Right Side (LGY, LSY)
  15. Wiring Harness Retainer (1) - Install
  16. GM5519744Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct (1) - Install

  17. GM5527880Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle- Right Side (1) - Install

  18. GM5527878Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Lower Baffle Retainer (2) - Install [2x]

  19. Radiator Air Upper Baffle Retainer (1) - Install [2x]
  20. GM5541503Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle Retainer (1) - Install

  21. GM5313403Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket- Left Side (2) - Install

    22. NOTE:

    Refer to the procedure link for torque specification.

  22. Radiator Upper Bracket Bolt (1) - Install and tighten [2x] - Radiator Upper Bracket Replacement - Left Side (LGY, LSY)
  23. GM5519729Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Intake Air Duct (1) - Install

  24. GM5527877Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle- Left Side (1) - Install

  25. GM5527876Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Lower Baffle Retainer (2) - Install [2x]

  26. Radiator Air Upper Baffle Retainer (1) - Install [2x]

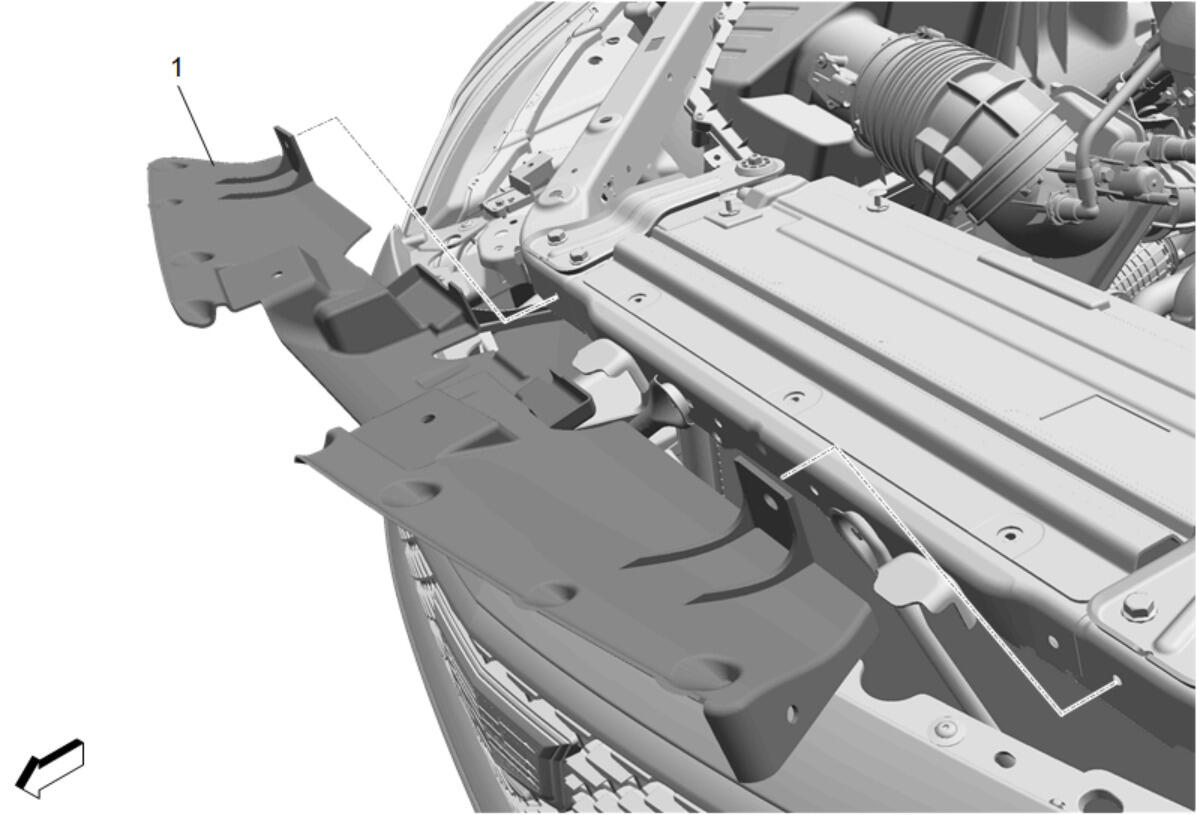

  27. GM5405450Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle (1) - Install

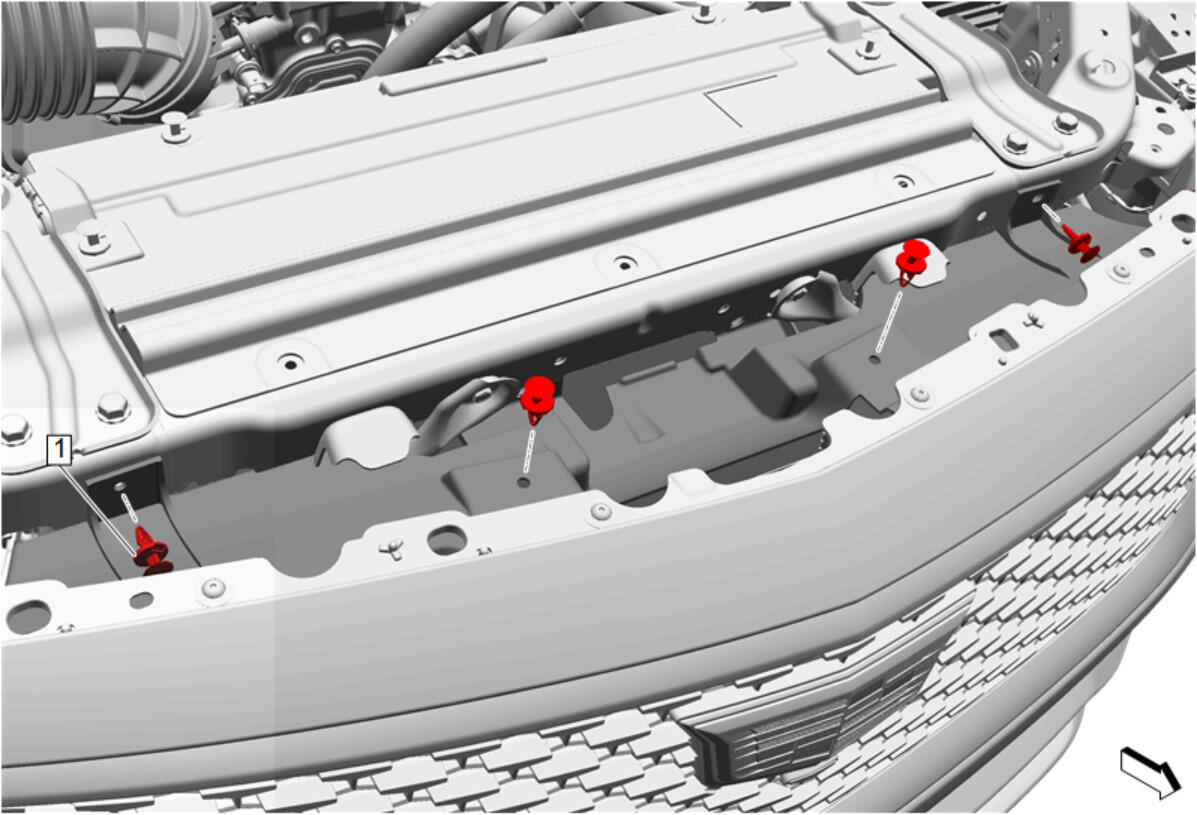

  28. GM5314546Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer (1) - Install [4x]

  29. GM5303289Courtesy of GENERAL MOTORS COMPANY

    Install the hood primary and secondary latch (2) and connect the electrical connector.

    30. NOTE:

    Refer to the procedure link for torque specification.

  30. Hood Primary and Secondary Latch Bolt (1) - Install and tighten [2x] - Hood Primary and Secondary Latch Replacement
  31. GM5527988Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Install

  32. GM5527987Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer (1) - Install [2x]

  33. GM5527233Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Lower Baffle (2) - Install

  34. Radiator Air Lower Baffle Retainer (1) - Install [6x]
  35. GM5285217Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)

  36. GM5284372Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Sight Shield (2) - Install

  37. Front Compartment Front Sight Shield Retainer (1) - Install [13x]
  38. Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LGY)
  39. Inspect for coolant leaks.
