Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5303289Courtesy of GENERAL MOTORS COMPANY

    Hood Primary and Secondary Latch (2) - Remove - Hood Primary and Secondary Latch Replacement

  2. GM5314546Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer (1) - Remove [4x]

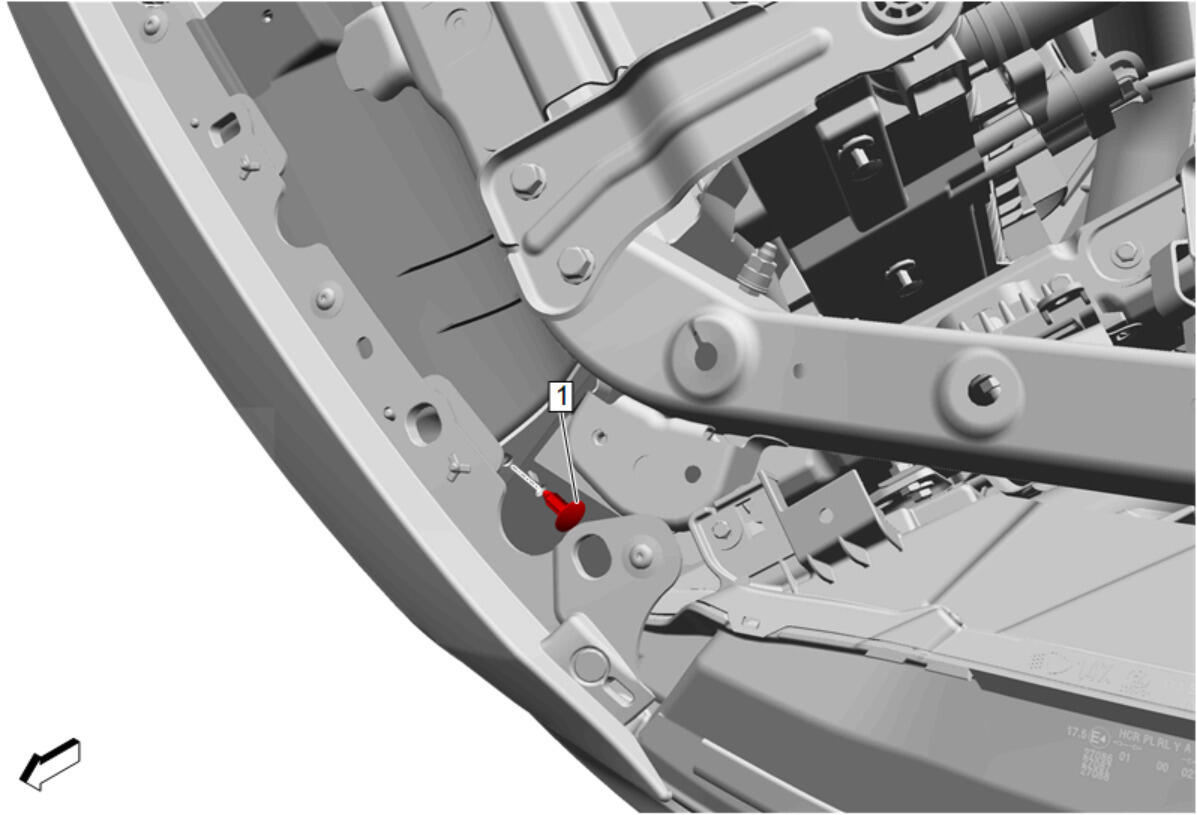

  3. GM5314547Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer- Left Side (1) - Remove

  4. GM5314549Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer- Right Side (1) - Remove

  5. GM5405450Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle (1) - Remove
