Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5548965Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser (1) - Install

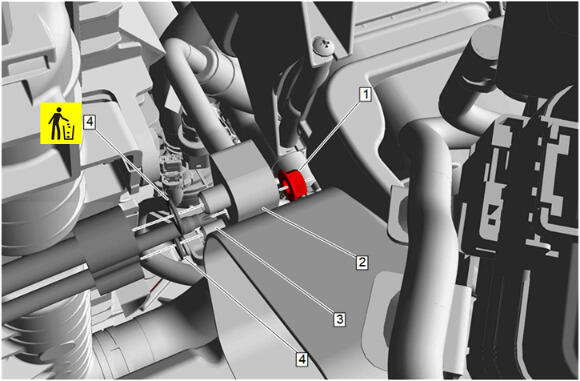

  2. GM5548964Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Sealing Washer (4) - Install NEW [2x]

  3. Air Conditioning Refrigerant Heat Exchanger (3) - Install
  4. Air Conditioning Compressor Hose (2) - Install
    5. CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Refer to the procedure link for torque specification.

  5. Air Conditioning Condenser Hose Nut (1) - Install and tighten - Air Conditioning Refrigerant Heat Exchanger Replacement (LGY)

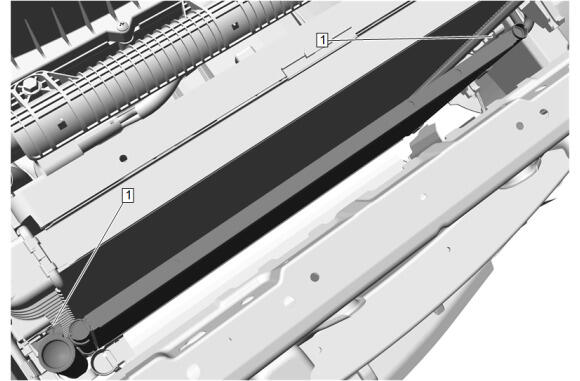

  6. GM5548963Courtesy of GENERAL MOTORS COMPANY

    Mount the condenser onto the engine radiator latching detents (1).

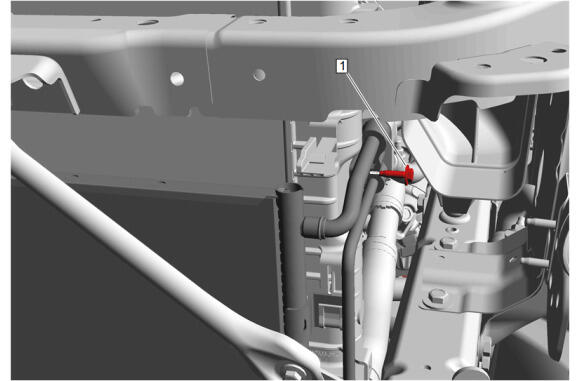

  7. GM5548961Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser Tube Bolt (1) - Install and tighten to 6 N.m (53 lb in)

  8. GM5542122Courtesy of GENERAL MOTORS COMPANY

    Engine Radiator (1) - Install

  9. GM5542105Courtesy of GENERAL MOTORS COMPANY

    Fasten the engine radiator to the engine radiator detents (1).

  10. GM5542100Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Radiator Upper Bracket Bolt (3) - Install and tighten - Radiator Replacement (LGY Intercooler Heat Exchanger)

  11. Charge Air Cooler Coolant Hose (2) - Install
  12. Charge Air Cooler Coolant Hose Retainer (1) - Engage
  13. GM5541041Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle - Right Side (1) - Install

  14. GM5541033Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle Retainer (1) - Install

  15. GM5541505Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle - Left Side (1) - Install

  16. GM5541504Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle Retainer (1) - Install [2x]

  17. GM5541506Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Outlet Hose Retainer (1) - Engage

  18. Auxiliary Radiator Outlet Hose (2) - Install
  19. GM5527986Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle Retainer (1) - Install [2x]

  20. GM5313404Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket - Right Side (3) - Install

    21. NOTE:

    Refer to the procedure link for torque specification.

  21. Radiator Upper Bracket Bolt (2) - Install and tighten [2x] - Radiator Upper Bracket Replacement - Right Side (LGY, LSY)
  22. Wiring Harness Retainer (1) - Install
  23. GM5519744Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct (1) - Install

  24. GM5527880Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle - Right Side (1) - Install

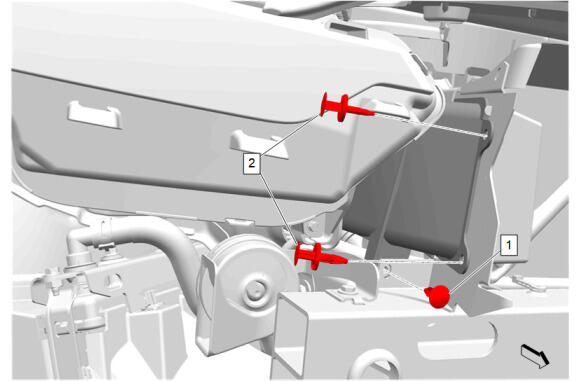

  25. GM5939736Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Lower Baffle Retainer (2) - Install [2x]

  26. Radiator Air Upper Baffle Retainer (1) - Install
  27. GM5541503Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Baffle Retainer (1) - Install

  28. GM5313403Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket - Left Side (2) - Install

    29. NOTE:

    Refer to the procedure link for torque specification.

  29. Radiator Upper Bracket Bolt (1) - Install and tighten [2x] - Radiator Upper Bracket Replacement - Left Side (LGY, LSY)
  30. GM5519729Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Intake Air Duct (1) - Install

  31. GM5527877Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle - Left Side (1) - Install

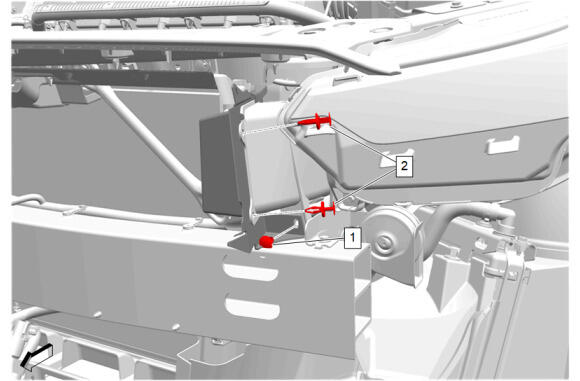

  32. GM5938231Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Lower Baffle Retainer (2) - Install [2x]

  33. Radiator Air Upper Baffle Retainer (1) - Install

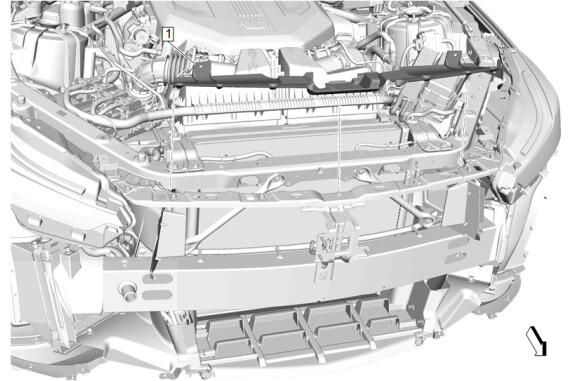

  34. GM5532149Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle (1) - Install

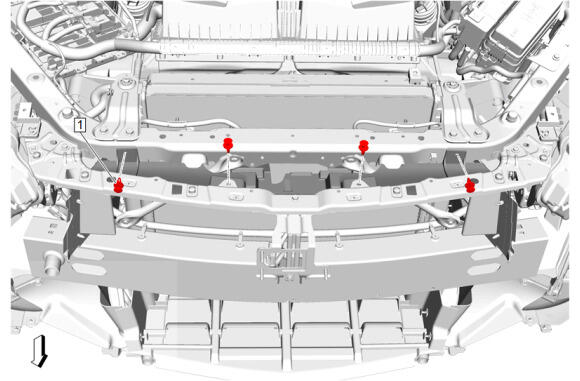

  35. GM5532148Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle Retainer (1) - Install [4x]

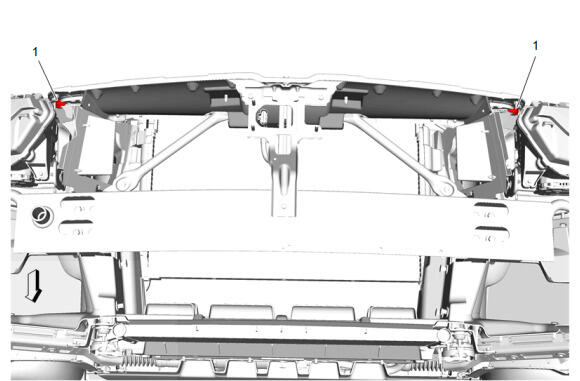

  36. GM5532146Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Upper Baffle Retainer (1) - Install [2x]

  37. GM5303289Courtesy of GENERAL MOTORS COMPANY

    Install the hood primary and secondary latch (2) and connect the electrical connector.

    38. NOTE:

    Refer to the procedure link for torque specification.

  38. Hood Primary and Secondary Latch Bolt (1) - Install and tighten [2x] - Hood Primary and Secondary Latch Replacement
  39. GM5527988Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Install

  40. GM5527987Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer (1) - Install [2x]

  41. GM5527233Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Lower Baffle (2) - Install

  42. Radiator Air Lower Baffle Retainer (1) - Install [6x]
  43. GM5285217Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement (without Blackwing)

  44. GM5284372Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Sight Shield (2) - Install

  45. Front Compartment Front Sight Shield Retainer (1) - Install [13x]
  46. Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LGY)
  47. Recharge the refrigerant. Refrigerant Recovery and Recharging
  48. Inspect for coolant leaks.
  49. Inspect for refrigerant leaks.
