Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

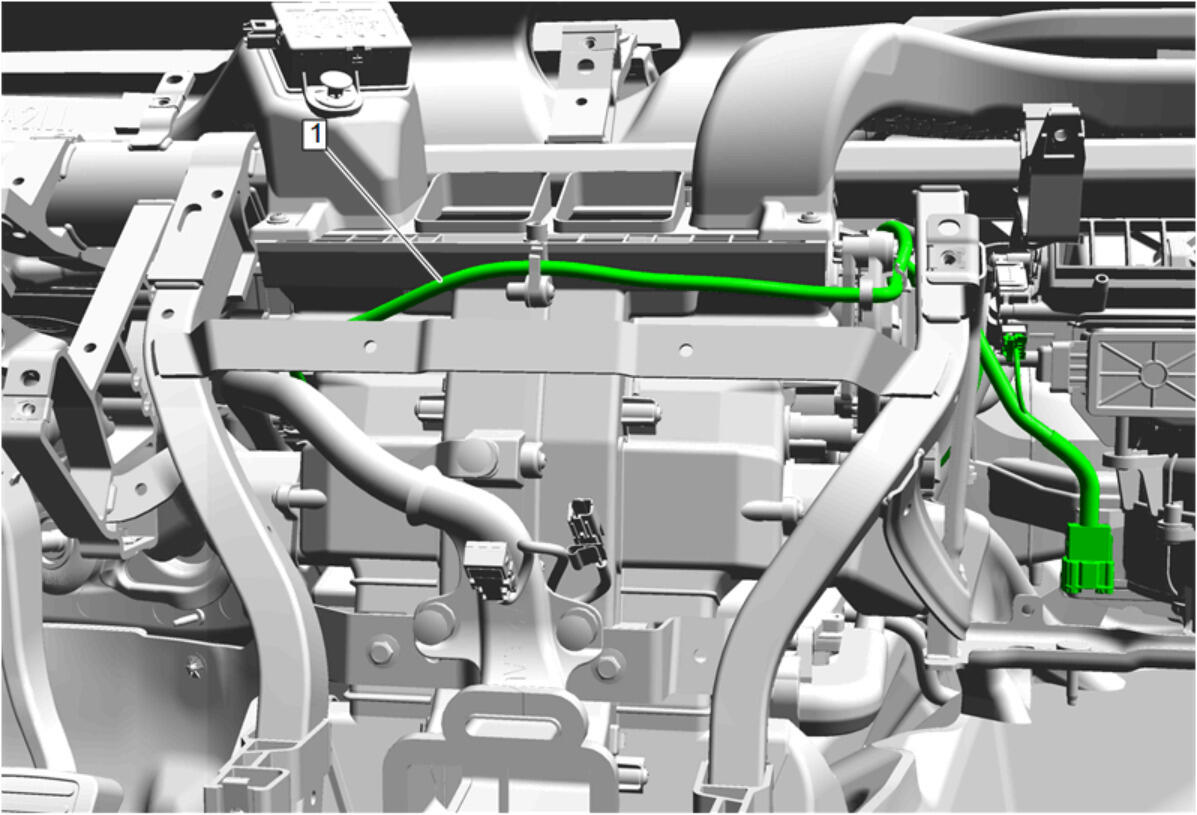

Air Conditioning Wiring Harness (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten [3x] - Fastener Specifications
Clip the harness onto the instrument panel center air outlet duct.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Carrier (1) - Install - Instrument Panel Carrier Replacement (without Head Up Display) , or Instrument Panel Carrier Replacement (with Head Up Display)
Perform the actuator calibration procedure. Actuator Recalibration
