Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

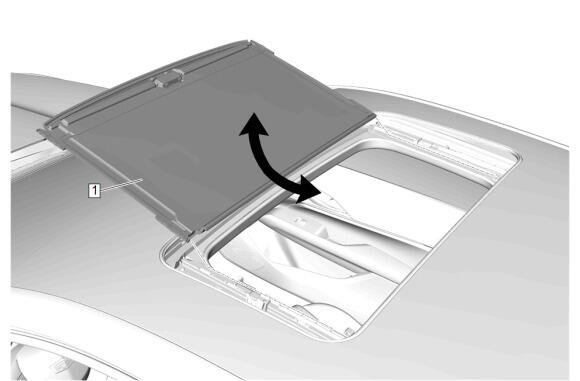

Sunroof Sunshade (1) - Install
- Feed the sunroof sunshade (1) rearward evenly into the sunroof sunshade side guides ensuring each side of the sunroof sunshade is seated appropriately.

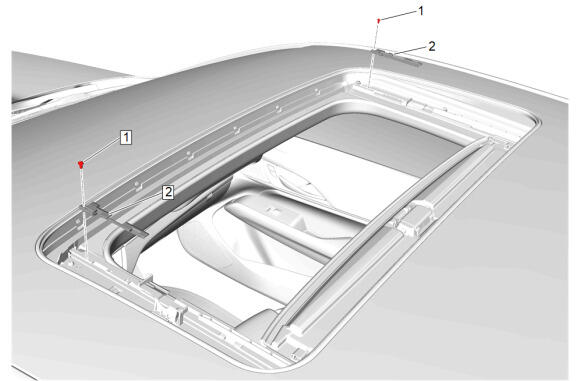

Sunroof Sunshade Bracket Set Plate (2) - Install [2x]
- Sunroof Sunshade Bracket Set Plate Screw (1) - Install and hand tighten [2x] - Fastener Specifications

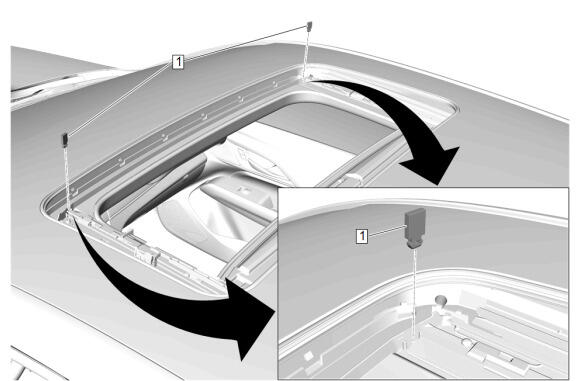

Sunshade Stopper (1) - Install [2x]
Sunroof Housing Drain Gutter (1) - Install
Secure the retaining tabs at each end of the sunroof housing drain gutter (1).
Sunroof Housing Drain Gutter Channel Screw (1) - Install and tighten [2x] - Fastener Specifications
Sunroof Air Deflector (1) - Install
- Pivot the sunroof air deflector (1) toward the front end of the vehicle and hold in place.
Secure the retainers at the sunroof air deflector (1).
Sunroof Window (2) - Install
- Sunroof Window Bolt (1) - Install and hand tighten [4x]
- Ensure the proper sunroof window height and opening fit. Sunroof Window Height and Opening Fit Adjustment
Sunroof Air Deflector Cover- Right Side (1) - Install
Sunroof Air Deflector Cover- Left Side (1) - Install
- Close the sunroof sunshade.
CAUTION:
Refer to Fastener Caution .
NOTE:
It will be necessary to hold the sunroof air deflector in place due to spring tension.
