Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

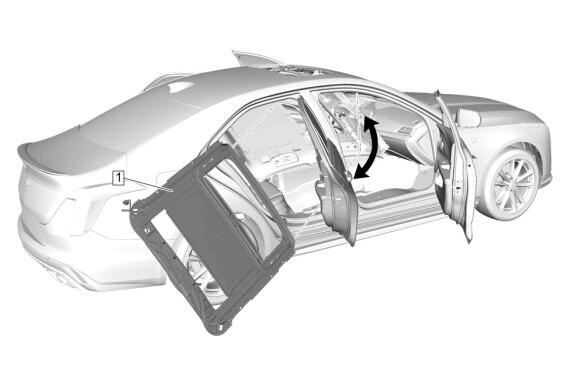

With the aid of an assistant, carefully install the sunroof housing (1).
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install and hand tighten the side 2 centermost sunroof module bolts (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

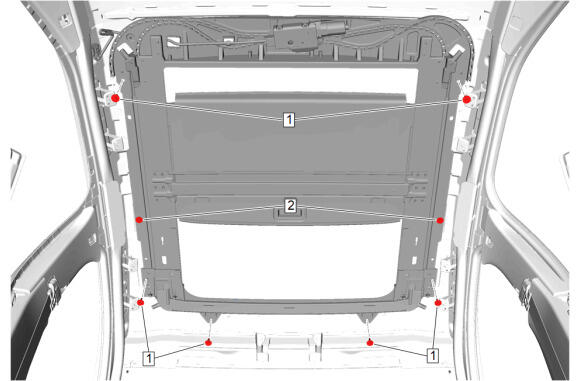

Sunroof Module Bolt (1) - Install and tighten [6x] - Fastener Specifications
Sunroof Module Bolt (2) - Tighten [2x] - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

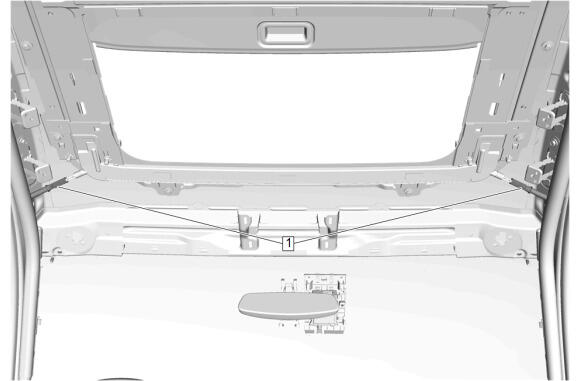

Connect the sunroof housing rear drain hoses (1) to the rear sunroof housing drain gutters.
Courtesy of GENERAL MOTORS COMPANY

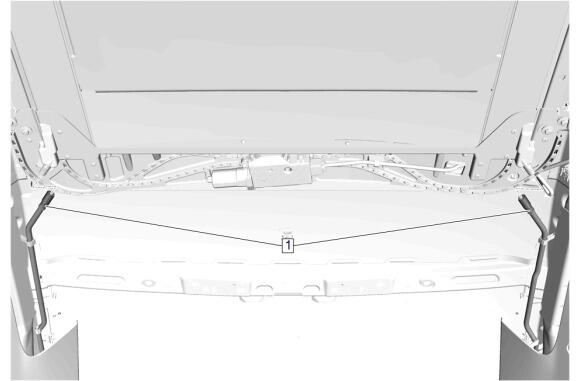

Connect the sunroof housing front drain hoses (1) to the front sunroof housing drain gutters.
Courtesy of GENERAL MOTORS COMPANY

Install the headlining trim panel (1).
Place the driver seat in the fully upright position.
Passenger Seat - Install - Front Seat Removal and Installation , or Front Seat Removal and Installation (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

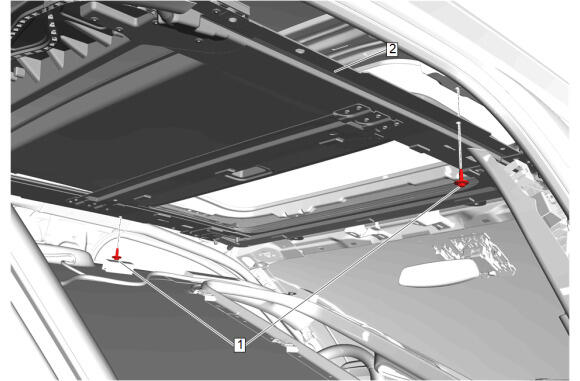

Sunroof Window (2) - Install
Sunroof Window Bolt (1) - Install and hand tighten [4x]
Ensure the proper sunroof window height and opening fit. Sunroof Window Height and Opening Fit Adjustment
Courtesy of GENERAL MOTORS COMPANY

Sunroof Air Deflector Cover- Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Sunroof Air Deflector Cover- Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Quarter Upper Trim Panel (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Quarter Window Trim Finish Panel Bolt (2) - Install and tighten [2x] - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Install the retainer that attaches the sunshade to the headliner.
Sunshade (3) - Install [2x]

CAUTION:

Refer to Fastener Caution .

Sunshade Bolt (2) - Install and tighten [4x] - Fastener Specifications
Sunshade Retainer Bolt Cover (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Center Pillar Upper Trim Panel (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Center Pillar Upper Garnish Molding Bolt (2) - Install and tighten [2x] - Fastener Specifications
Center Pillar Upper Trim Panel Bolt Cap (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Roof Rail Assist Handle (2) - Install [2x]
Roof Rail Assist Handle Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.
Courtesy of GENERAL MOTORS COMPANY

Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Install the roof console (1) and front roof console tab into the headliner.
Courtesy of GENERAL MOTORS COMPANY

Push up both sides of the roof console (1) along the retaining clips to install.
Courtesy of GENERAL MOTORS COMPANY

Sunshade Support (2) - Install [2x]
Sunshade Support Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Windshield Garnish Molding Bolt (2) - Install and tighten [2x] - Fastener Specifications
Align the retainer clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
Windshield Garnish Molding (1) - Install [2x]
Water test and inspect sunroof for proper operation.
Close the sunroof sunshade.
Enable the SIR System. SIR Disabling and Enabling
Perform the necessary initialization procedure. Sunroof/Sunshade Motor Initialization
