Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
Refer to Fastener Caution .

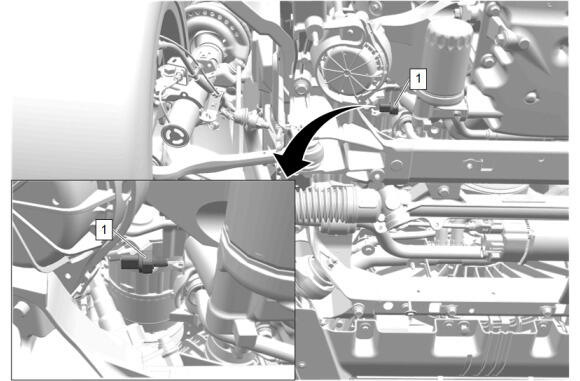

Engine Oil Pressure Sensor (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Install the front cradle sheer plate (2) between the front bumper fascia center air deflector and the driveline and front suspension cradle and raise into position.
Ensure that the left and right side wheelhouse liners (1) are positioned in place under the front cradle sheer plate (2).
Front Wheelhouse Liner Bolt (1) - Install and tighten [2x] - Fastener Specifications
Front Crossmember Brace Bolt (3) - Install and tighten [8x] - Fastener Specifications
Front Cradle Shear Plate Nut (2) - Install and tighten [2x] - Fastener Specifications
Front Cradle Shear Plate Bolt (1) - Install and tighten [4x] - Fastener Specifications
Remove the jack.
Front Bumper Fascia Air Deflector Retainer (2) - Install
Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
NOTE:
Left side shown, right side similar.

Front Compartment Air Deflector- Left Side and Right Side (1) - Install
NOTE:
Left side shown, right side similar.

Front Compartment Air Deflector Bolt- Left Side and Right Side (3) - Install and tighten [6x] - Fastener Specifications
Front Wheelhouse Liner Retainer- Left Side and Right Side (2) - Install [2x]
Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Install and tighten [6x] - Fastener Specifications
Remove the support and lower the vehicle.
