Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Electronic Suspension Wheel Front Vertical Accelerometer (2) - Install

CAUTION:

Refer to Fastener Caution .

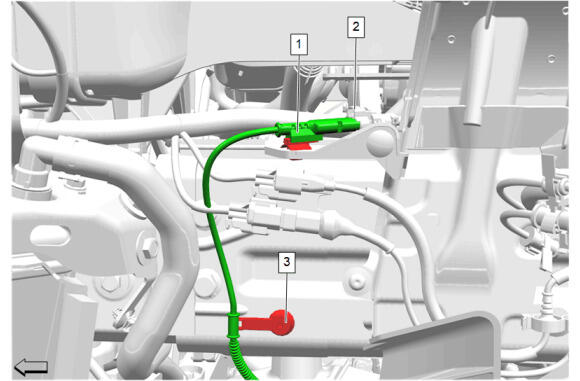

Electronic Suspension Front Vertical Accelerometer Bolt (1) - Install and tighten - Fastener Specifications
Install the electronic suspension wheel front vertical accelerometer retainers (3).
Courtesy of GENERAL MOTORS COMPANY

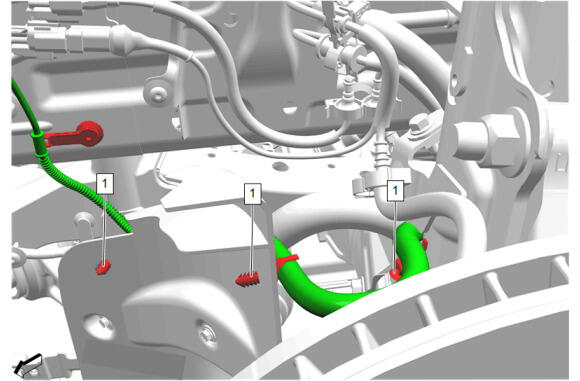

Install the 3 electronic suspension wheel front vertical accelerometer retainers (1).
Courtesy of GENERAL MOTORS COMPANY

Install the electronic suspension wheel front vertical accelerometer retainer (1).
Install the electronic suspension wheel front vertical accelerometer retainer (3).
Connect the electronic suspension wheel front vertical accelerometer electrical connector (2).
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner (3) - Install
Front Wheelhouse Liner Retainer (2) - Install [4x]
Front Wheelhouse Liner Bolt (1) - Install and tighten [7x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Bumper Fascia Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Engine Front Splash Shield (3) - Install
Engine Front Splash Shield Retainer (2) - Install [2x]
Engine Front Splash Shield Bolt (1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Tire Front Air Deflector (2) - Install
Front Tire Front Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
