Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

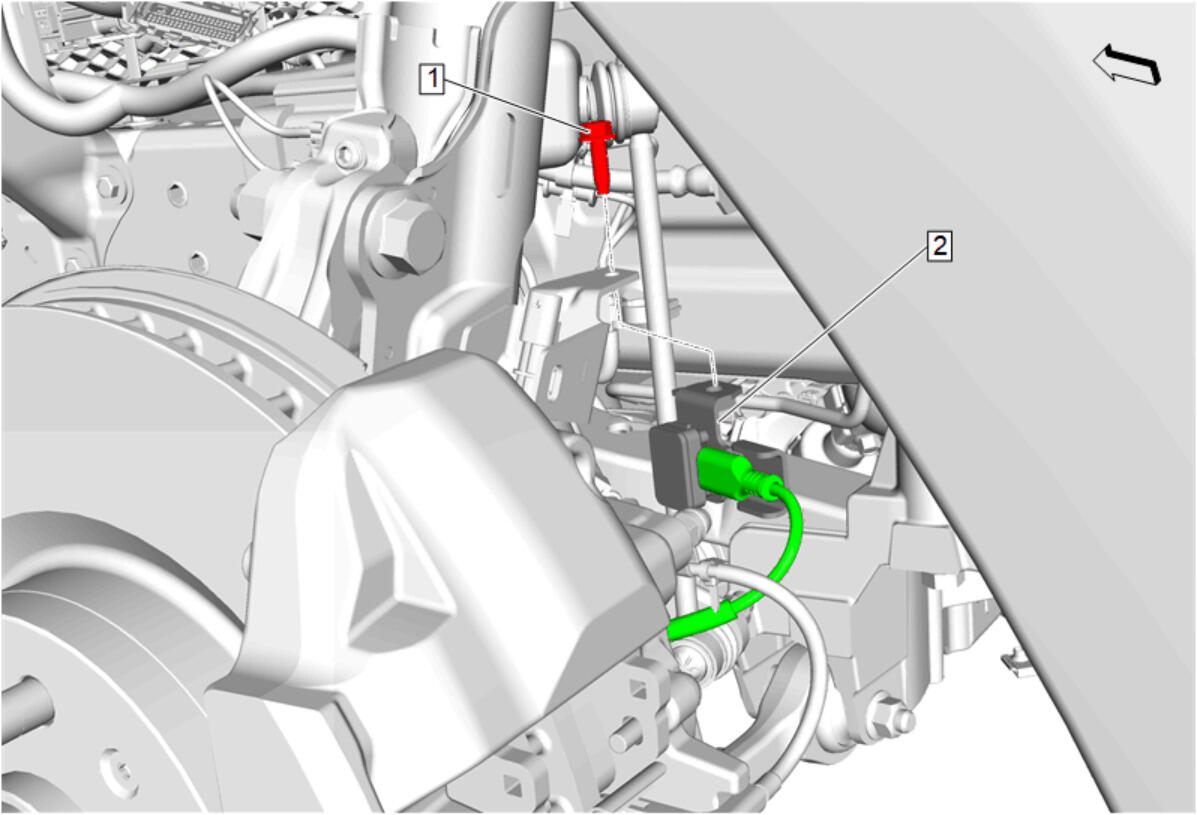

Electronic Suspension Wheel Front Vertical Accelerometer (2) - Install
- Electronic Suspension Front Vertical Accelerometer Bolt (1) - Install and tighten - Fastener Specifications

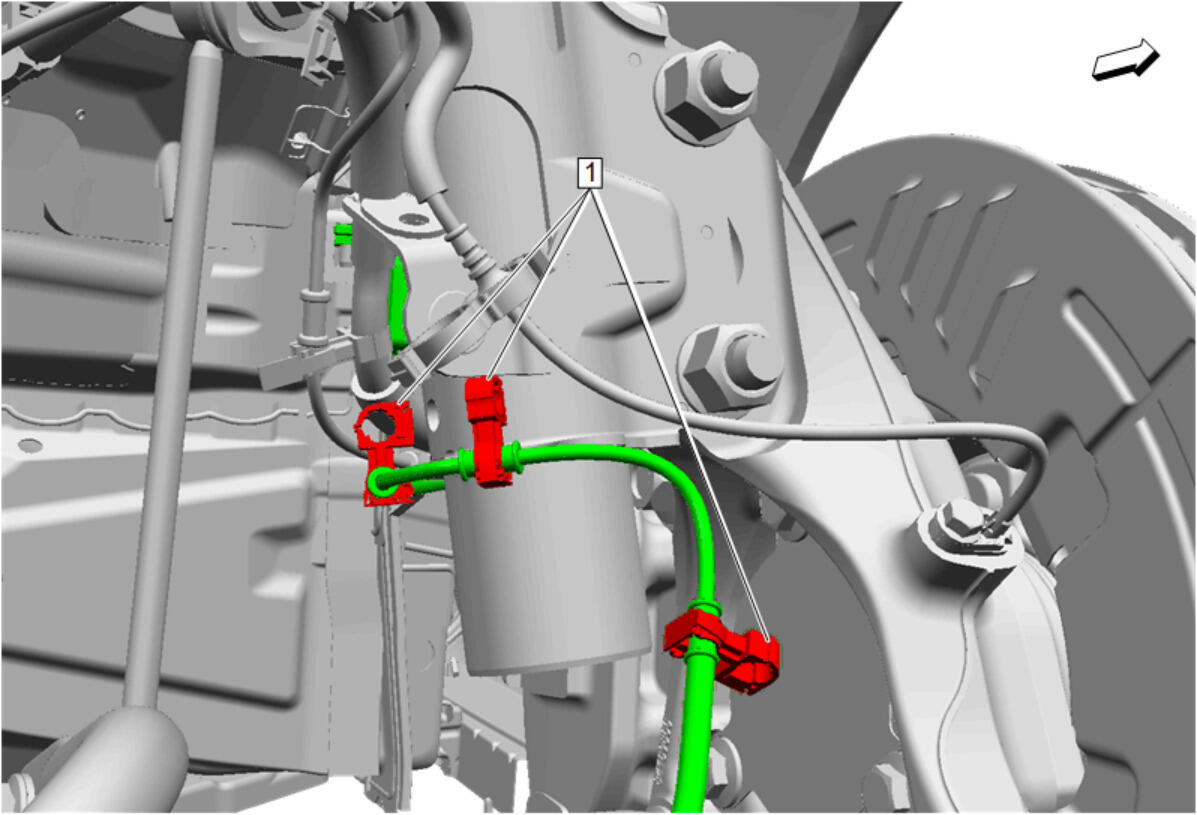

Install the 3 electronic suspension wheel front vertical accelerometer retainers (1).

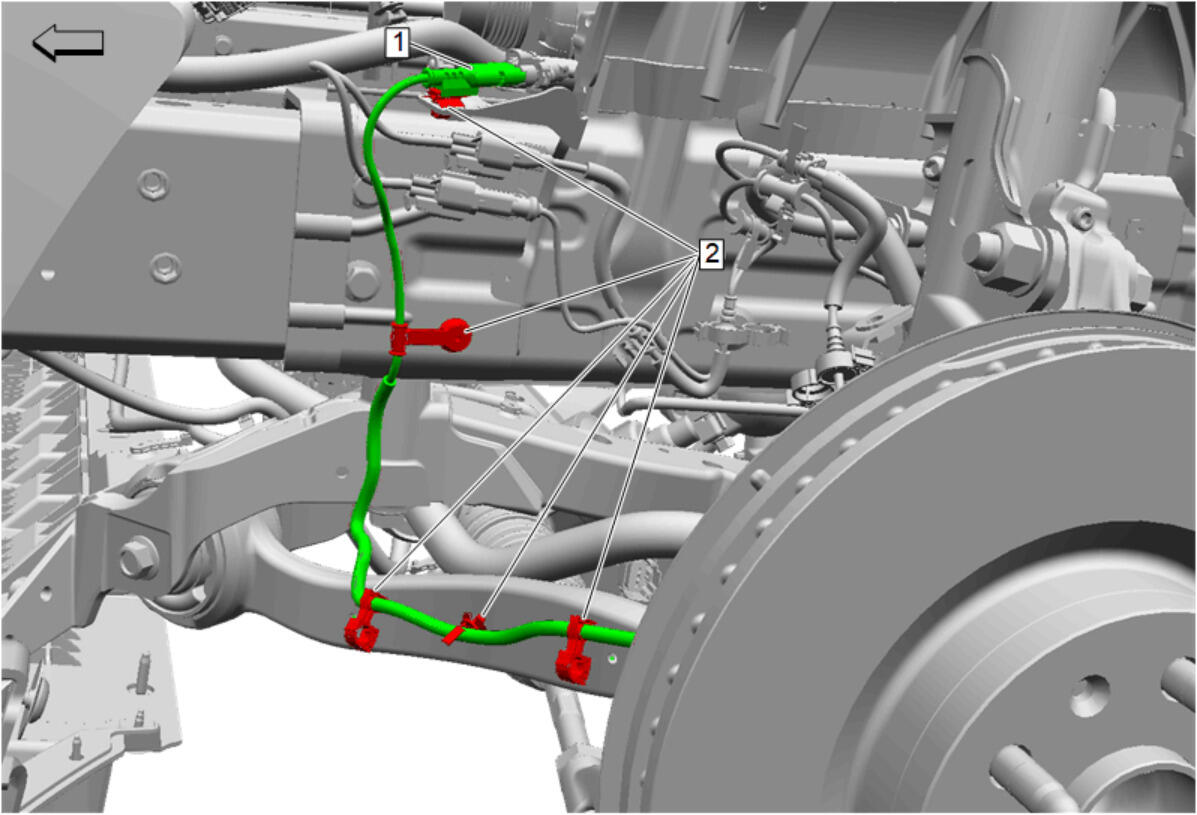

Install the 5 electronic suspension wheel front vertical accelerometer retainers (2).
- Connect the electronic suspension wheel front vertical accelerometer electrical connector (1).
Front Wheelhouse Liner (3) - Install
- Front Wheelhouse Liner Retainer (2) - Install [4x]
- Front Wheelhouse Liner Bolt (1) - Install and tighten [7x] - Fastener Specifications
Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Front Bumper Fascia Bolt (2) - Install and tighten [2x] - Fastener Specifications
Engine Front Splash Shield (3) - Install
- Engine Front Splash Shield Retainer (2) - Install [2x]
- Engine Front Splash Shield Bolt (1) - Install and tighten [5x] - Fastener Specifications
Front Tire Front Air Deflector (2) - Install
- Front Tire Front Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
