Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

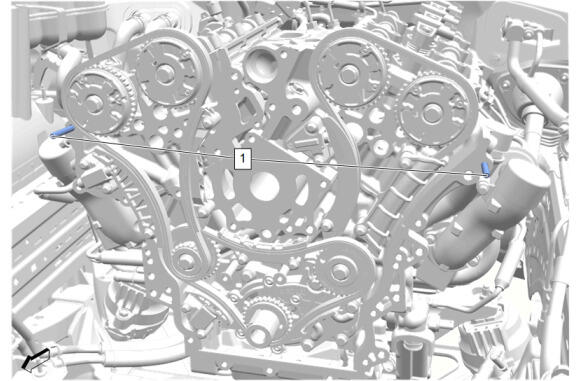

  1. GM5876048

    Install the 2 EN-46109  Guide Pin (1).

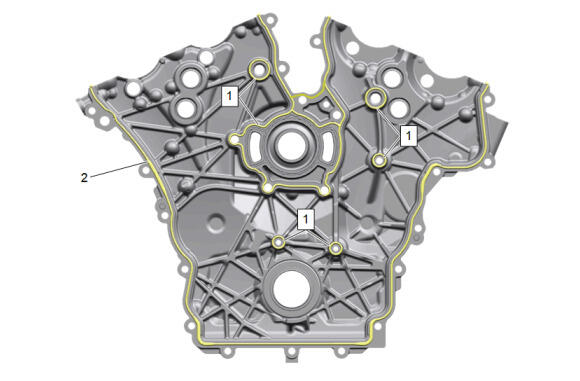

  2. GM5876166
    NOTE:

    Apply a 3 mm (0.118 in) bead of RTV sealant on the engine front cover as shown (1). Apply a 5 mm (0.197 in) bead of RTV sealant on the engine front cover as shown (2). Adhesives, Fluids, Lubricants, and Sealers

  3. GM5876046

    Engine Front Cover (1) - Install

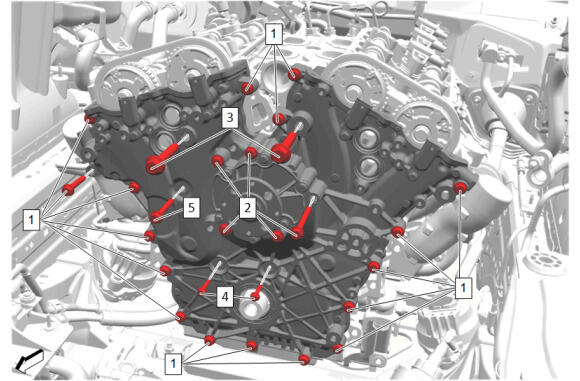

  4. GM5876036
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Some components not shown for graphic clarity.

    Engine Front Cover Bolt (1, 2, 4, 5) - Install and hand tighten [25x]

  5. Replace the EN-46109  Guide Pin with 2 engine front cover bolts (1).
  6. Engine Front Cover Hole Plug Bolt (3) - Install and hand tighten [2x]
  7. Engine Front Cover Bolt (1, 2, 4, 5) - Tighten in sequence [25x] - Fastener Specifications
  8. Engine Front Cover Hole Plug Bolt (3) - Tighten in sequence [2x] - Fastener Specifications
  9. GM6049112

    Water Pump Pulley (2) - Install

  10. Water Pump Pulley Bolt (1) - Install and tighten [4x] - Fastener Specifications
  11. GM5868314

    Camshaft Position Actuator Solenoid Valve (2) - Install

  12. Camshaft Position Actuator Solenoid Valve Bolt (1) - Install and tighten - Fastener Specifications
  13. Connect the camshaft position actuator solenoid valve (2) electrical connector.
  14. GM5868277

    Camshaft Position Actuator Solenoid Valve (2) - Install

  15. Camshaft Position Actuator Solenoid Valve Bolt (1) - Install and tighten - Fastener Specifications
  16. Connect the camshaft position actuator solenoid valve (2) electrical connector.
  17. GM5839247

    Camshaft Position Actuator Solenoid Valve (2) - Install

  18. Camshaft Position Actuator Solenoid Valve Bolt (1) - Install and tighten - Fastener Specifications
  19. Connect the camshaft position actuator solenoid valve (2) electrical connector.
  20. GM5839194

    Camshaft Position Actuator Solenoid Valve (2) - Install

  21. Camshaft Position Actuator Solenoid Valve Bolt (1) - Install and tighten - Fastener Specifications
  22. Connect the camshaft position actuator solenoid valve (2) electrical connector.

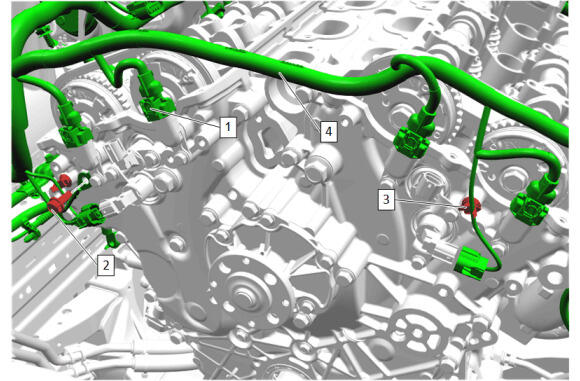

  23. GM5876035

    Wiring Harness (4) - Install

  24. Engine Wiring Harness Ground Bolt (2) - Install and tighten - Fastener Specifications
  25. Wiring Harness Retainer (3) - Install [2x]
  26. Connect the camshaft position sensors (1) electrical connectors.
  27. GM5877761

    Generator and Drive Belt Tensioner Bracket (1) - Install

  28. GM5877760

    Generator Bracket Bolt (3) - Install and tighten - Fastener Specifications

  29. Generator Bracket Bolt (2) - Install and tighten - Fastener Specifications
  30. Generator Bracket Bolt (1) - Install and tighten [2X] - Fastener Specifications
  31. GM4277485

    Generator (2) - Install

  32. Generator Bolt (1) - Install and tighten [3X] - Fastener Specifications
  33. GM5880573

    Electrical Connector (4) - Connect

  34. Starter Solenoid Cable (3) - Install
  35. Engine Wiring Harness Generator Lead Nut (2) - Install and tighten - Fastener Specifications
  36. Protective Cap (1) - Install
  37. GM5863684

    Auxiliary Water Pump (2) - Install

  38. Charge Air Cooler Front Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  39. GM5902682

    Air Conditioning Compressor Front Bracket (3) - Install

  40. Air Conditioning Compressor Front Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  41. Air Conditioning Compressor Front Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  42. GM5854905
    NOTE:

    Some components not shown for graphic clarity.

    Drive Belt Tensioner (2) - Install

  43. Drive Belt Tensioner Bolt (1) - Install and tighten - Fastener Specifications
  44. GM5854959

    Air Conditioning Compressor (1) - Install

  45. GM5854958

    Air Conditioning Compressor Bolt (1) - Install and tighten [2x] - Fastener Specifications

  46. GM5854957
    CAUTION:

    New Air Conditioning sealing washers should never be exposed to any type of oil or lubricant, the rubber material may absorb the oil causing failures during installation or the life of the vehicle.

    Air Conditioning Compressor Hose Seal - Small (1) - Install NEW

  47. Air Conditioning Compressor Hose Seal - Large (2) - Install NEW
  48. Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (3) - Install
  49. Air Conditioning Compressor Hose Bolt (4) - Install and tighten - Fastener Specifications
  50. GM5854965

    Wiring Harness Retainer (3) - Install [2x]

  51. Electrical Connector (4) - Connect [2x]
  52. Air Conditioning Compressor Rear Bracket (2) - Install
  53. Air Conditioning Compressor Bolt (1) - Install and tighten - Fastener Specifications
  54. GM5873722
    NOTE:
    • Align the notch of the crankshaft balancer to the timing pin in the crankshaft.
    • Some components not shown for graphic clarity.

    Crankshaft Balancer (1) - Loosely install

  55. GM5162409
    NOTE:

    Some components not shown for graphic clarity.

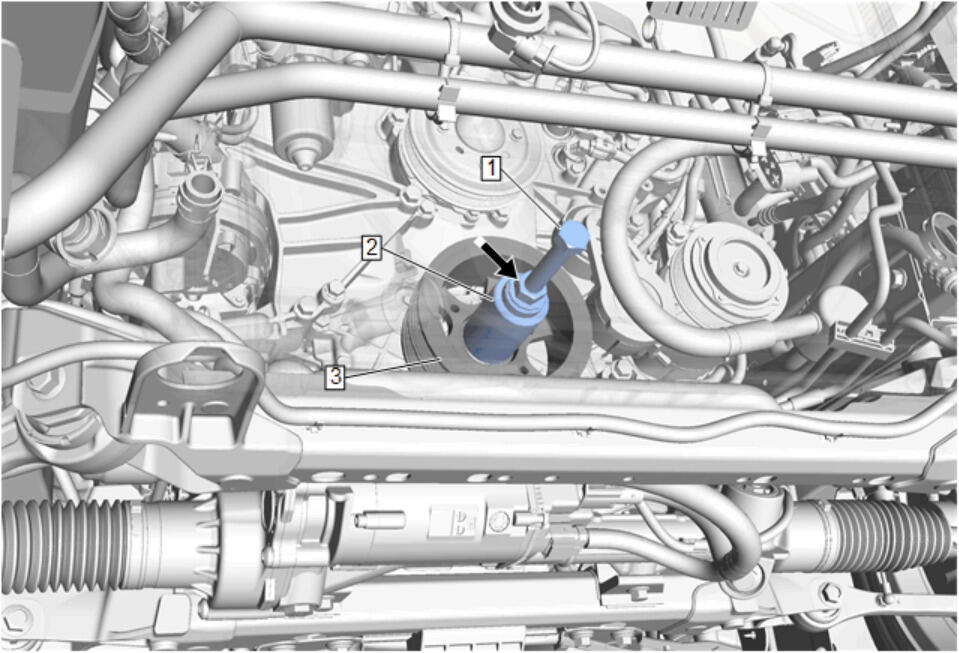

    Install the EN-41478 - A  Crankshaft Front Oil Seal Installer (1) and the EN-41665 - A  Crankshaft Balancer and Sprocket Installer (2) to the crankshaft balancer (2).

  56. Use the adjustment nut on the EN-41478 - A  Crankshaft Front Oil Seal Installer (1) to properly seat the crankshaft balancer (3).
  57. Once the crankshaft balancer has been properly seated, remove the EN-41478 - A  Crankshaft Front Oil Seal Installer (1) and the EN-41665 - A  Crankshaft Balancer and Sprocket Installer (2).

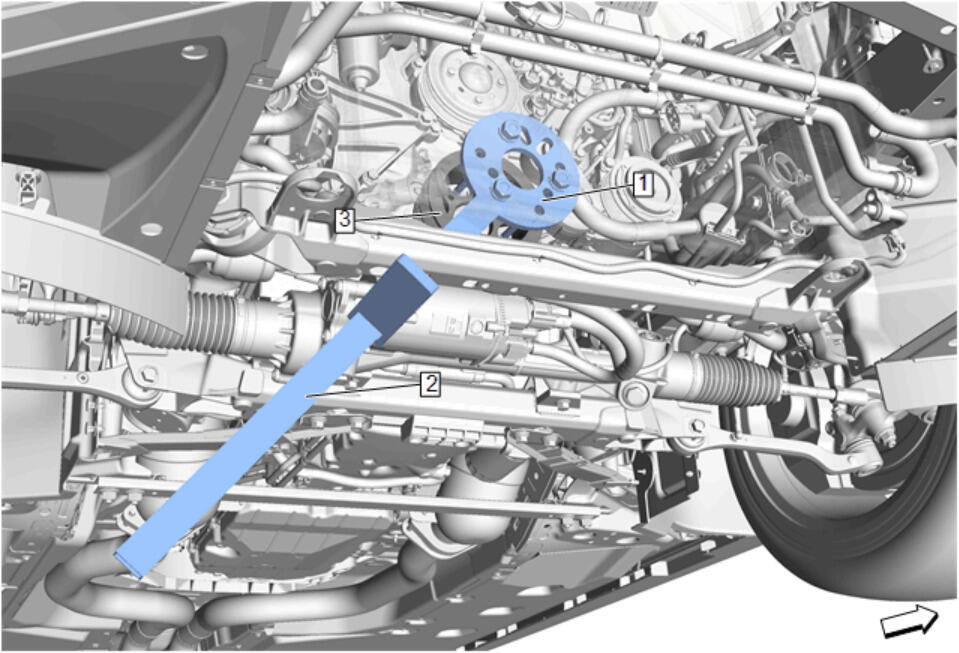

  58. GM5162410
    NOTE:

    Some components not shown for graphic clarity.

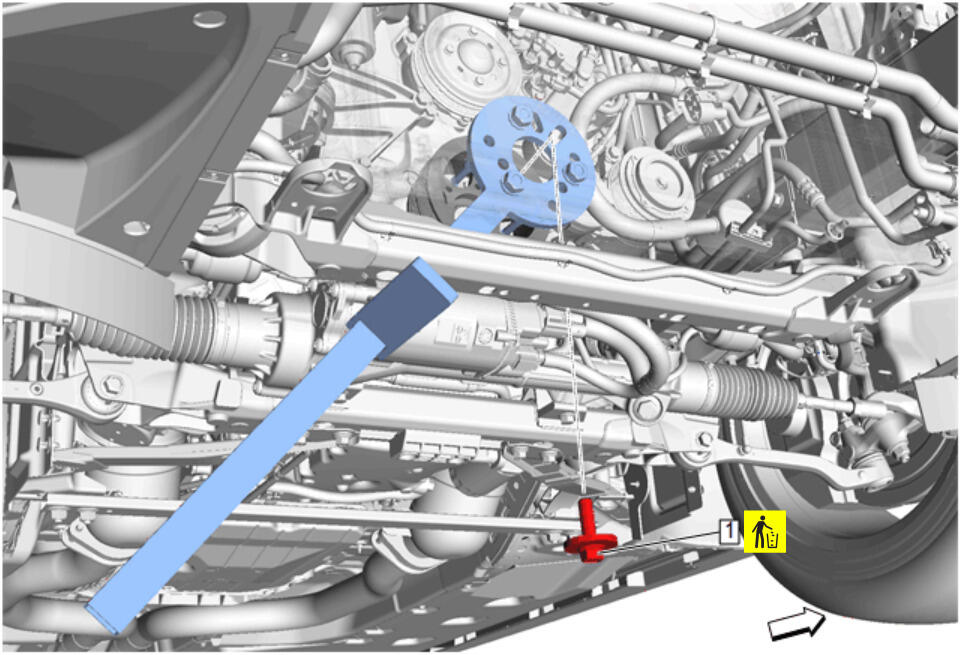

    Install the EN-52287  Balancer Holding Kit (1) and the EN-956 - 1  Extension Bar (2) to the crankshaft balancer (3).

  59. GM5162412
    NOTE:

    Some components not shown for graphic clarity.

    Crankshaft Balancer Bolt (1) - Install NEW and tighten - Fastener Specifications

  60. GM5162410

    Remove the EN-52287  Balancer Holding Kit (1) and the EN-956 - 1  Extension Bar (2) to the crankshaft balancer (3).

  61. GM5877068

    Install the front cradle sheer plate (2) between the front bumper fascia center air deflector and the driveline and front suspension cradle and raise into position.

  62. Ensure that the left and right side wheelhouse liners (1) are positioned in place under the front cradle sheer plate (2).
  63. GM5877073

    Front Wheelhouse Liner Bolt (1) - Install and tighten [2x] - Fastener Specifications

  64. GM5877036

    Front Crossmember Brace Bolt (3) - Install and tighten [8x] - Fastener Specifications

  65. Front Cradle Shear Plate Nut (2) - Install and tighten [2x] - Fastener Specifications
  66. Front Cradle Shear Plate Bolt (1) - Install and tighten [4x] - Fastener Specifications
  67. Remove the jack.
  68. GM5862911

    Front Bumper Fascia Air Deflector Retainer (2) - Install

  69. Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
  70. GM5876696
    NOTE:

    Left side shown, right side similar.

    Front Compartment Air Deflector- Left Side and Right Side (1) - Install

  71. GM5876673
    NOTE:

    Left side shown, right side similar.

    Front Bumper Fascia Lower Stiffener Bolt- Left Side and Right Side (3) - Install and tighten [6x] - Fastener Specifications

  72. Front Compartment Air Deflector Retainer- Left Side and Right Side (2) - Install [2x]
  73. Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
  74. Remove the support and lower the vehicle.
  75. GM5866934

    Radiator Outlet Hose (1) - Install

  76. GM5866945

    Install the radiator outlet hose (2) to the right side charge air cooler ensuring that it is fully seated.

  77. Install the radiator outlet hose retainer (3) into the radiator outlet hose connector.
  78. Radiator Outlet Hose Clip (1) @ Charge Air Cooler Bracket - Install
  79. GM5422180
    NOTE:

    Left side shown, right side similar.

    Front Wheelhouse Liner- Right Side (3) - Install - Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)

  80. GM5866915

    Radiator Outlet Hose Clip (2) @ Engine Cooler Fan - Install

  81. Radiator Outlet Hose Clip (1) @ Radiator Outlet Hose Bracket - Install
  82. GM5866913

    Radiator Outlet Hose (1) @ Engine Radiator - Install

  83. Radiator Outlet Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  84. GM5865285

    Radiator Outlet Hose (4) @ Radiator Outlet Pipe - Install

  85. Radiator Outlet Hose (3) @ Engine Oil Cooler Adapter - Install
  86. Radiator Outlet Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  87. Radiator Outlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  88. GM5854879

    Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise, then hold tension.

  89. Install the accessory drive primary belt (2) onto the last idler pulley. Check to ensure that the drive belt is centered on each pulley, and fully seated into ribbed pulleys.
  90. Slowly release tension from the drive belt tensioner (1).
  91. Inspect the accessory drive primary belt (2) again to ensure centered on each pulley.
  92. GM5873076
    NOTE:

    Some components not shown for graphic clarity.

    Apply RTV silicone sealant on the engine front cover split lines (1). The required thickness of the sealing bead is 8 mm (0.3150 in) by 4 mm (0.1575 in). Adhesives, Fluids, Lubricants, and Sealers

  93. GM5872771
    NOTE:

    Some components not shown for graphic clarity.

    Camshaft Cover Seal (2) - Install NEW

  94. Camshaft Cover (1) - Install
  95. GM5872769
    NOTE:

    Some components not shown for graphic clarity.

    Camshaft Housing Cover Bolt (1) - Install and hand tighten [15x]

  96. Camshaft Housing Cover Bolt (2) - Tighten in sequence [15x] - Fastener Specifications
  97. GM5873081

    Remove the 3 EN-46101  Spark Plug Tube Seal Guides (1).

  98. GM5872767
    NOTE:

    Some components not shown for graphic clarity.

    Engine Wiring Harness (3) - Install

  99. Engine Wiring Harness Retainer (1) - Install [5x]
  100. GM5861118

    Radiator Surge Tank Inlet Hose (4) - Install

  101. Radiator Surge Tank Inlet Hose Clip (3) @ Radiator Surge Tank Inlet Pipe Bracket - Connect
  102. GM5860355

    Air Cleaner Outlet Duct (1) - Install

  103. GM5860354

    Retainer Spring (4) - Engage

  104. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  105. Charge Air Bypass Valve Hose (2) - Install
  106. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  107. GM5854948

    Install the NEW positive crank ventilation foul air tube (2) and secure the 2 positive crankcase ventilation tube connectors (1).

  108. GM5868429

    Lubricate the oil filler tube seal (2) with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers

  109. GM5868428

    Install the oil filler tube (1) to the camshaft cover and rotate clockwise to install.

  110. GM5869205
    NOTE:

    Some components not shown for graphic clarity.

    Apply RTV silicone sealant on the engine front cover split lines (1). The required thickness of the sealing bead is 8 mm (0.3150 in) by 4 mm (0.1575 in). Adhesives, Fluids, Lubricants, and Sealers

  111. GM5869076
    NOTE:

    Some components not shown for graphic clarity.

    Camshaft Cover Seal (2) - Install NEW

  112. Camshaft Cover (1) - Install
  113. GM5869075
    NOTE:

    Some components not shown for graphic clarity.

    Camshaft Housing Cover Bolt (1) - Install and hand tighten [15x]

  114. Camshaft Housing Cover Bolt (2) - Tighten in sequence [15x] - Fastener Specifications
  115. GM5869085

    Remove the 3 EN-46101  Spark Plug Tube Seal Guides (1).

  116. GM5869074
    NOTE:

    Some components not shown for graphic clarity.

    Engine Wiring Harness (3) - Install

  117. Engine Wiring Harness Retainer (2) - Install [10x]
  118. Electrical Connector (1) - Connect
  119. GM5861168

    Ignition Coil (2) - Install

  120. Ignition Coil Bolt (1) - Install and tighten - Fastener Specifications
  121. Connect the ignition coil electrical connector.
  122. GM5861042

    Air Cleaner Outlet Resonator Bracket (1) - Install

  123. GM5861039

    Oil Level Indicator Tube (3) - Install

  124. Retainer (2) - Install [2x]
  125. Air Cleaner Outlet Duct Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  126. GM5860358

    Auxiliary Air Cleaner Outlet Duct (1) - Install

  127. GM5860357

    Retainer Spring (3) - Engage

  128. Charge Air Bypass Valve Hose (2) - Install
  129. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  130. GM5860356

    Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications

  131. Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (1) - Connect - Plastic Collar Quick Connect Fitting Service
  132. GM5846598

    Install the NEW positive crankcase ventilation fresh air tube (2) and secure the 2 positive crankcase ventilation tube connectors (1).

  133. GM5864683

    Lower Intake Manifold Gasket (2) - Install NEW [6x]

  134. Intake Manifold (1) - Install
  135. GM5864681

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  136. Lower Intake Manifold Bolt (1) - Install and hand tighten [6x]
  137. Lower Intake Manifold Bolt (1) - Tighten in sequence [6x] - Fastener Specifications
  138. Connect all electrical connectors.
  139. GM5862841
    NOTE:

    Some components not shown for graphic clarity.

    Positive Crankcase Ventilation Foul Air Tube (2) - Install

  140. Positive Crankcase Ventilation Tube Connector (1) - Connect [2x] - Plastic Collar Quick Connect Fitting Service
  141. GM4044075

    Fuel Pipe Shield (1) - Install

  142. GM5869276

    Wiring Harness (3) - Install

  143. Retainer (2) - Install [3x]
  144. Engine Rear Noise Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
  145. GM4044046

    Engine Rear Noise Shield Bolt (1) - Install and tighten - Fastener Specifications

  146. GM5862663
    NOTE:

    Some components not shown for graphic clarity.

    Charge Air Cooler Cover Seal (3) - Install NEW [2x]

  147. Intake Manifold Gasket (2) - Install NEW
  148. Charge Air Cooler Cover (1) - Install
  149. GM5862662
    NOTE:

    Some components not shown for graphic clarity.

    Charge Air Cooler Cover Bolt (2) - Install and hand tighten [12x]

  150. Charge Air Cooler Cover Bolt (2) - Tighten in sequence [12x] - Fastener Specifications
  151. Charge Air Cooler Bolt (1) - Install and hand tighten [2x]
  152. Charge Air Cooler Bolt (1) - Tighten in sequence [2x] - Fastener Specifications
  153. Connect the electrical connector.
  154. GM5840540

    Charge Air Cooler Inlet Air Tube Seal (4) - Install NEW

  155. Charge Air Cooler Inlet Pipe (3) - Install
  156. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  157. Charge Air Cooler Inlet Air Tube Bolt (1) - Install and tighten [2x] - Fastener Specifications
  158. GM4182652

    Charge Air Bypass Valve (3) - Install

  159. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  160. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  161. GM5840576

    Charge Air Cooler Inlet Air Tube Seal (4) - Install NEW

  162. Charge Air Cooler Inlet Pipe (3) - Install
  163. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  164. Charge Air Cooler Inlet Air Tube Bolt (1) - Install and tighten [2x] - Fastener Specifications
  165. GM4182819

    Charge Air Bypass Valve (3) - Install

  166. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  167. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  168. GM5871751

    Charge Air Cooler Coolant Pipe Seal (3) - Install NEW [4x]

  169. Supercharger Water Manifold Gasket (2) - Install NEW [2x]
  170. Supercharger Water Manifold (1) - Install
  171. GM5871741

    Charge Air Cooler Coolant Manifold Bolt (1) - Install and tighten [4x] - Fastener Specifications

  172. GM5871728

    Charge Air Cooler Coolant Hose (4) - Install

  173. Charge Air Cooler Coolant Hose Clamp (3) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  174. Charge Air Cooler Coolant Hose (2) - Install
  175. Charge Air Cooler Coolant Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  176. GM4057738

    Turbocharger Wastegate Actuator Vacuum Tank (2) - Install

  177. Turbocharger Wastegate Actuator Vacuum Tank Bolt (1) - Install and tighten [2x] - Fastener Specifications
  178. GM4057709

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Connect

  179. GM4057618

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Connect - Plastic Collar Quick Connect Fitting Service

  180. GM4057453

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Connect

  181. GM4057385

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Connect - Plastic Collar Quick Connect Fitting Service

  182. GM4057362

    Turbocharger Wastegate Actuator Vacuum Source Tube @ Vacuum Pump - Connect - Plastic Collar Quick Connect Fitting Service

  183. GM4052248

    Charge Air Bypass Valve Vacuum Tank Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service

  184. GM5839308

    Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (3) @ Auxiliary Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service

  185. GM5839386

    Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Install and tighten [2x] - Fastener Specifications

  186. Connect the turbocharger wastegate regulator solenoid valve electrical connector.
  187. GM5839336

    Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Install and tighten [2x] - Fastener Specifications

  188. Connect the turbocharger wastegate regulator solenoid valve electrical connector.
  189. GM5842421

    Evaporative Emission Canister Purge Tube (1) - Install

  190. Evaporative Emission Canister Purge Tube (1) - Connect [2x] - Plastic Collar Quick Connect Fitting Service
  191. GM5839283

    Oil Filler Cap - Remove

  192. Intake Manifold Cover (2) - Install
  193. Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
  194. Oil Filler Cap - Install
  195. GM5862960

    Air Cleaner Assembly (2) - Install

  196. Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
  197. Install all retainers and wiring harnesses to the air cleaner assembly as necessary.
  198. Connect the 2 mass airflow sensor electrical connectors.
  199. GM5864667

    Auxiliary Air Cleaner Outlet Duct (4) - Install

  200. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  201. Air Cleaner Outlet Duct (2) - Install
  202. Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
  203. GM5839233

    Transmission Control Module (1) @ Engine Control Module Bracket (2) - Install

  204. Engine Control Module Bracket (2) - Install
  205. GM5839232

    Engine Control Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications

  206. GM5839234

    Engine Control Module (1) - Install

  207. Connect the electrical connectors.
  208. GM5861123

    Radiator Surge Tank Outlet Pipe (3) - Install

  209. Radiator Surge Tank Inlet Hose Clamp (4) @ Engine Radiator - Engage - Hose Clamp Replacement Guidelines - Spring Type
  210. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Control Module Bracket - Install
  211. Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Inlet Hose - Engage - Hose Clamp Replacement Guidelines - Spring Type
  212. GM5872932
    NOTE:

    Left side shown, right side similar.

    Front End Sheet Metal Diagonal Brace- Right Side (3) - Install

  213. Front End Sheet Metal Cross Brace Bolt- Right Side (1) - Install and tighten - Fastener Specifications
  214. Front End Sheet Metal Diagonal Brace Nut- Right Side (1) - Install and tighten - Fastener Specifications
  215. GM5839407

    Front End Sheet Metal Cross Brace- Left Side and Right Side (3) - Install [2x]

  216. Front Suspension Strut Upper Mounting Nut- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
  217. Front End Sheet Metal Cross Brace Bolt- Left Side and Right Side (1) - Install and tighten [6x] - Fastener Specifications
  218. Install all wiring harness retainers to the front end sheet metal cross braces.
  219. GM5864524

    Radiator Air Upper Baffle- Upper (3) - Install

  220. Radiator Air Upper Baffle Bolt (2) - Install and tighten [2x] - Fastener Specifications
  221. Radiator Air Upper Baffle Retainer (1) - Install [5x]
  222. GM5865881

    Plenum Front Panel (1) - Install - Plenum Front Panel Removal and Installation (with Blackwing) , or Plenum Front Panel Removal and Installation (without Blackwing)

  223. Fill the charge air cooling system. Refer to Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  224. Fill the engine oil to the proper level with NEW engine oil. Engine Oil and Oil Filter Replacement
  225. Start the engine and check for leaks.
scientia non olet · About LEMON Manuals
