Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

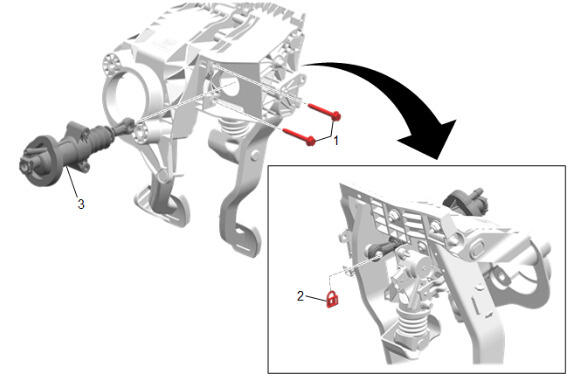

  1. GM5903296Courtesy of GENERAL MOTORS COMPANY

    Clutch Master Cylinder (3) - Install

    2. NOTE:

    Ensure correct clutch pushrod eyelet orientation and the retainer clip is fully engaged.

  2. Clutch Pedal Lever Pin Retainer (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Clutch Master Cylinder Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. GM5890829Courtesy of GENERAL MOTORS COMPANY

    Install a NEW brake pedal retainer (1) to the brake pedal.

  5. Ensure the locking tabs on the brake pedal retainer are fully engaged in the brake pedal.
  6. GM5890827Courtesy of GENERAL MOTORS COMPANY

    Using an assistant to reposition the brake master cylinder - with power brake booster and electronic brake control module, install the brake pedal (1).

  7. GM5890824Courtesy of GENERAL MOTORS COMPANY

    Brake Master Cylinder Nut (2) - Install and tighten [2x] - Fastener Specifications

  8. Brake Pedal Nut (1) - Install and tighten [2x] - Fastener Specifications
  9. GM5890825Courtesy of GENERAL MOTORS COMPANY

    Engage the brake pedal (1) to the brake master cylinder push rod by pushing inwards.

  10. Ensure the NEW brake pedal retainer is secured by lightly pulling rearward on the brake pedal (1).
  11. GM5890835Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (2) - Install

  12. Battery Positive Cable Retainer (3) - Install
  13. Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications
  14. GM5890830Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness (1) - Install

  15. Retainer (2) - Install [3x]
  16. Connect the electrical connectors. (3)
  17. GM5644434Courtesy of GENERAL MOTORS COMPANY

    Reposition the instrument panel outer air outlet inner duct (1).

  18. Air Distributor Duct Bolt (2) - Install and tighten - Fastener Specifications
  19. GM5454443Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Bracket (2) - Install

  20. Serial Data Gateway Module Bracket Bolt (1) - Tighten [2x] - Fastener Specifications
  21. Connect and position the wiring harness.
  22. GM5454224Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Typical wiring harness shown. Individual wiring harnesses may differ based on option content.

    Connect the electrical connectors.

  23. GM5454049Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

  24. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [3x] - Fastener Specifications
  25. GM5325852Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side Outer (2) - Install

  26. Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications
  27. GM5446428Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  28. Instrument Panel Knee Bolster (1) - Install
  29. GM5446424Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications

  30. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications
  31. Connect the electrical connector.
  32. GM5433957Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  33. Instrument Panel Center Trim Pad (1) - Install
  34. Return the steering column to its original position.
  35. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  36. Instrument Panel Lower Trim Panel Insulator (1) - Install
  37. GM5310878Courtesy of GENERAL MOTORS COMPANY

    Install the tabs into the instrument panel lower trim panel insulator (1).

  38. GM5310877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

  39. Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
  40. Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
  41. GM5300282Courtesy of GENERAL MOTORS COMPANY

    Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).

  42. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  43. GM5443235Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  44. Instrument Panel Lower Airbag - Driver Side (2) - Install
  45. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  46. GM5890822Courtesy of GENERAL MOTORS COMPANY

    Remove the plug from the clutch master cylinder reservoir hose (2) outlet.

  47. Clutch Master Cylinder Reservoir Hose (2) - Install
  48. Remove the plug from the clutch master cylinder pipe (3) inlet.
  49. Clutch Master Cylinder Pipe (3) @ Clutch Master Cylinder - Install
  50. Retainer (1) @ Clutch Master Cylinder - Engage
  51. Enable the SIR System. SIR Disabling and Enabling .
  52. Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
  53. Bleed the clutch hydraulic system. Hydraulic Clutch System Bleeding
  54. Perform the clutch pedal position sensor learn procedure. Clutch Pedal Position Learn
