Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

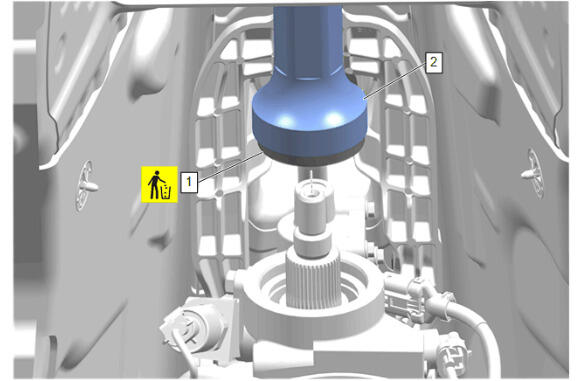

  1. GM5868122Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install the seal onto the tool before installing into the case to prevent damage to the seal.

    Using the J-44765  Seal Installer (2), install the NEW main shaft rear seal (1).

  2. GM4062705Courtesy of GENERAL MOTORS COMPANY

    Install the propeller shaft transmission yoke (1) to the transmission output shaft.

  3. GM4055391Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft Transmission Yoke Washer (2) - Install NEW

  4. Install the DT-45012  Holding Fixture (4) to the propeller shaft transmission yoke (3).
    5. CAUTION:

    Refer to Fastener Caution .

  5. While holding DT-45012  Holding Fixture (4), install a NEW propeller shaft transmission yoke nut (1) using an appropriate socket, tighten the NEW propeller shaft transmission yoke nut. Fastener Specifications
  6. Remove the DT-45012  Holding Fixture (4) from the propeller shaft transmission yoke (3).
  7. GM5867503Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft (1) - Install

  8. GM5863691Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  9. Install the 2 propeller shaft bearing support bolts (1) and tighten. Fastener Specifications
  10. GM5863695Courtesy of GENERAL MOTORS COMPANY

    Align the reference mark (3) between the propeller shaft flange (1) and the rear axle pinion flange (2).

  11. GM5863697Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  12. Install the 3 rear propeller shaft nuts (2) and 3 rear propeller shaft bolts (1).
  13. Tighten the 3 rear propeller shaft bolts (1). Fastener Specifications
  14. GM5867501Courtesy of GENERAL MOTORS COMPANY

    Align the reference mark (2) between the propeller shaft flange (3) and the output flange (1) of the transmission.

  15. GM5867502Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  16. Install the 3 front propeller shaft nuts (1) and the 3 front propeller shaft bolts (2).
  17. Tighten the 3 front propeller shaft bolts (1). Fastener Specifications
  18. GM5334717Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Number 2 Cross Bar Reinforcement (2) - Install

  19. Floor Panel Number 2 Cross Bar Reinforcement Bolt (1) - Install and tighten [4x] - Fastener Specifications
  20. GM5865888Courtesy of GENERAL MOTORS COMPANY

    Exhaust Intermediate Underbody Heat Shield (2) - Install

  21. Exhaust Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
  22. GM5865329Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket (2) - Install NEW

  23. With the aid of an assistant, install the exhaust muffler (1).
  24. GM5865300Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler Hanger Bracket Nut (1) - Install and tighten [4x] - Fastener Specifications

  25. GM5865293Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  26. GM5865287Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  27. GM5406632Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install [2x]

  28. GM5406578Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install [2x]

  29. GM5865271Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Tighten [2x] - Fastener Specifications

  30. GM5865265Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  31. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Reinforcement (2) - Install

  32. Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten [6x] - Fastener Specifications
  33. GM5854893Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  34. Underbody Rear Air Deflector Nut- Left Side (4) - Install and tighten [2x][2x] - Fastener Specifications
  35. Transmission Fluid Cooler Pipe Bracket Bolt- Left Side (3) - Install and tighten [2x] - Fastener Specifications
  36. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [5x] - Fastener Specifications
  37. Underbody Front Air Deflector Bolt- Left Side (1) - Install and tighten [6x] - Fastener Specifications
  38. GM5839256Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  39. Underbody Rear Air Deflector Nut- Right Side (4) - Install and tighten [2x][2x] - Fastener Specifications
  40. Transmission Fluid Cooler Pipe Bracket Bolt- Right Side (3) - Install and tighten [2x] - Fastener Specifications
  41. Underbody Rear Air Deflector Nut- Right Side (2) - Install and tighten [5x] - Fastener Specifications
  42. Underbody Front Air Deflector Bolt- Right Side (1) - Install and tighten [6x] - Fastener Specifications
  43. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  44. Underbody Rear Air Deflector Nut- Right Side (3) - Install and tighten [3x] - Fastener Specifications
  45. Underbody Rear Air Deflector Bolt- Right Side (2) - Install and tighten [3x] - Fastener Specifications
  46. Underbody Rear Air Deflector Nut- Right Side (4) - Install and tighten [2x] - Fastener Specifications
  47. Rear Wheelhouse Liner Bolt- Right Side (1) - Install and tighten - Fastener Specifications
  48. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  49. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [3x] - Fastener Specifications
  50. Underbody Rear Air Deflector Bolt- Left Side (3) - Install and tighten [3x] - Fastener Specifications
  51. Underbody Rear Air Deflector Nut- Left Side (4) - Install and tighten [2x] - Fastener Specifications
  52. Rear Wheelhouse Liner Bolt- Left Side (1) - Install and tighten - Fastener Specifications
  53. GM5395705Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Left Side and Right Side (2) - Install [2x]

  54. Rear Tire Front Air Deflector Bolt- Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
  55. Remove the support and lower the vehicle.
  56. Inspect the exhaust system for leaks.
