Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

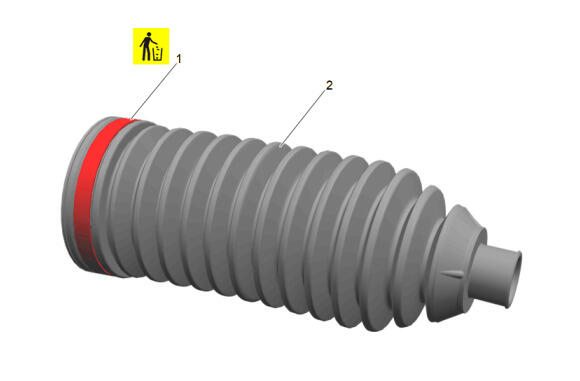

  1. GM5876028Courtesy of GENERAL MOTORS COMPANY

    Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).

  2. GM5475542Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot (1) - Install

  3. GM5475543Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Inner Clamp (2) - Tighten-use DT-35910  Drive Axle Boot Clamp Pliers (1)

  4. GM5475544Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Outer Clamp (1) - Install

  5. GM5472634Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.

    NOTE:

    Some components not shown for graphic clarity.

    Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.

  6. GM5420204Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.

    NOTE:

    Some components not shown for graphic clarity.

    Steering Linkage Outer Tie Rod (1) - Install

  7. GM5420203Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution .

    NOTE:

    Some components not shown for graphic clarity.

    Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications

  8. GM5877068Courtesy of GENERAL MOTORS COMPANY

    Install the front cradle sheer plate (2) between the front bumper fascia center air deflector and the driveline and front suspension cradle and raise into position.

  9. Ensure that the left and right side wheelhouse liners (1) are positioned in place under the front cradle sheer plate (2).
  10. Front Wheelhouse Liner Bolt (1) - Install and tighten [2x] - Fastener Specifications
  11. GM5877036Courtesy of GENERAL MOTORS COMPANY

    Front Crossmember Brace Bolt (3) - Install and tighten [8x] - Fastener Specifications

  12. Front Cradle Shear Plate Nut (2) - Install and tighten [2x] - Fastener Specifications
  13. Front Cradle Shear Plate Bolt (1) - Install and tighten [4x] - Fastener Specifications
  14. Remove the jack.
  15. GM5862911Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Air Deflector Retainer (2) - Install

  16. Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
  17. GM5876696Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Compartment Air Deflector- Left Side and Right Side (1) - Install

  18. GM5876673Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Bumper Fascia Lower Stiffener Bolt- Left Side and Right Side (3) - Install and tighten [6x] - Fastener Specifications

  19. Front Compartment Air Deflector Retainer- Left Side and Right Side (2) - Install [2x]
  20. Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
  21. GM5873831Courtesy of GENERAL MOTORS COMPANY

    Front Brake Rotor Cooling Duct Deflector (1) - Install

  22. Front Brake Rotor Cooling Duct Deflector Bolt (2) - Install and tighten [3x] - Fastener Specifications
  23. GM5873833Courtesy of GENERAL MOTORS COMPANY

    Install the 2 chassis harness retainers (1).

  24. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  25. Lower the vehicle.
  26. Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
