Transmission Mount Replacement (AWD)

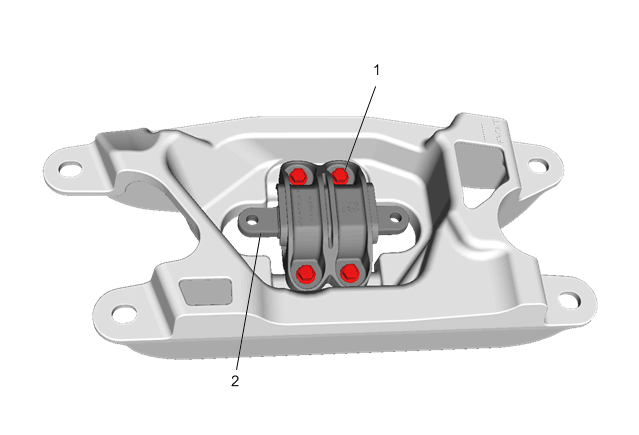

GM4244609Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Transmission Support Crossmember Replacement (LGX)
1 Transmission Mount Bolt [4X]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Transmission Mount
