Transmission Support Crossmember Replacement (LGX)

Courtesy of GENERAL MOTORS COMPANY

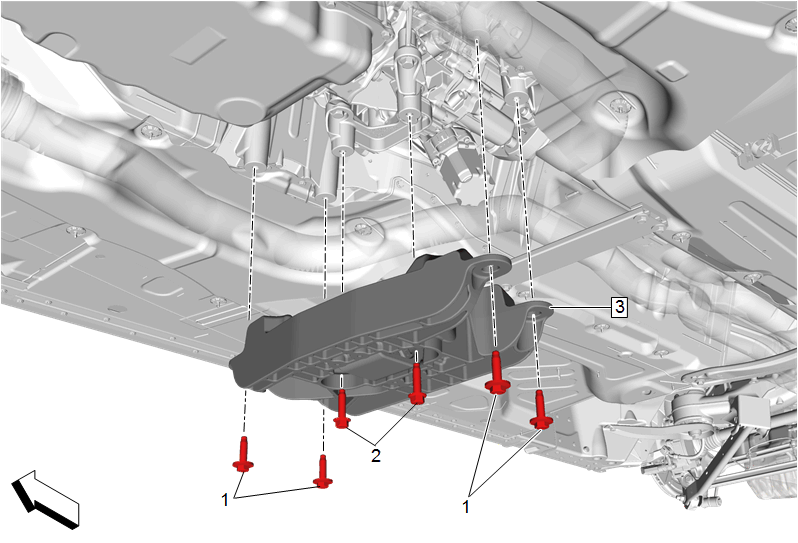

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Support the transmission with a suitable jack.
1	Transmission Mount Bracket Bolt [4x] CAUTION: Refer to Fastener Caution Tighten 58 N.m (43 lb ft)
2	Transmission Mount Bolt [2] Tighten 58 N.m (43 lb ft)
3	Transmission Mount
