Installation Procedure

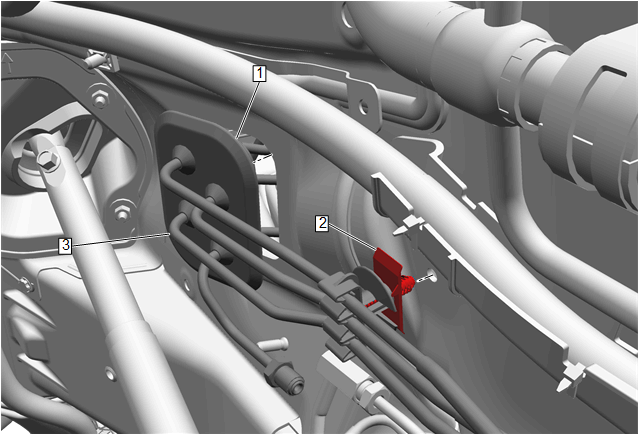

  1. GM5095992Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator Valve Pipe (3) - Install

  2. Brake Pressure Modulator Valve Pipe Pass Through Grommet (1) - Secure
  3. Retainer (2) - Secure

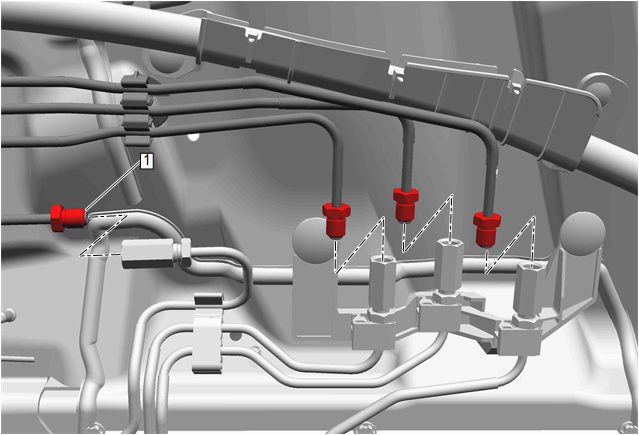

  4. GM5095972Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Brake Pressure Modulator Valve Brake Pipe Fitting (1) - Install and tighten [4x] 19 N.m (14 lb ft)

  5. Remove the plugs from the brake pipes.
  6. Install the powertrain. Refer to: Engine Replacement
  7. GM5095973Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator Valve Secondary Brake Pipe Fitting (1) - Install and tighten [4x] 19 N.m (14 lb ft)

  8. Remove the plugs from the master cylinder outlet ports.
  9. Air Inlet Grille Panel - Install - Air Inlet Grille Panel Replacement
  10. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  11. Bleed the brake system. Hydraulic Brake System Bleeding (Manual with LGX) Hydraulic Brake System Bleeding (Pressure with LGX) Hydraulic Brake System Bleeding (Pressure with LTA)
