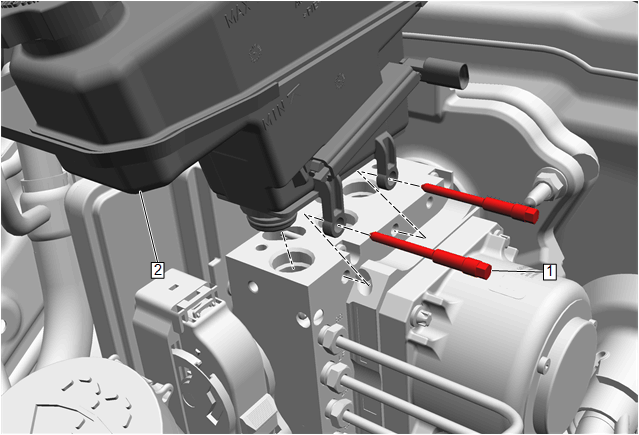

Brake Master Cylinder Reservoir Replacement (LTA)

Preliminary Procedures

WARNING:

The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
2. Air Inlet Grille Panel Replacement
3. Remove and properly dispose of the brake fluid in the master cylinder reservoir.
4. Disconnect the electrical connector.

Procedure

1. Connect the electrical connector.
2. Fill the brake master cylinder reservoir. Brake Master Cylinder Reservoir Filling
3. Air Inlet Grille Panel Replacement
4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
5. Transfer components as necessary.
