Brake Fluid Level Indicator Switch Replacement (LGX)

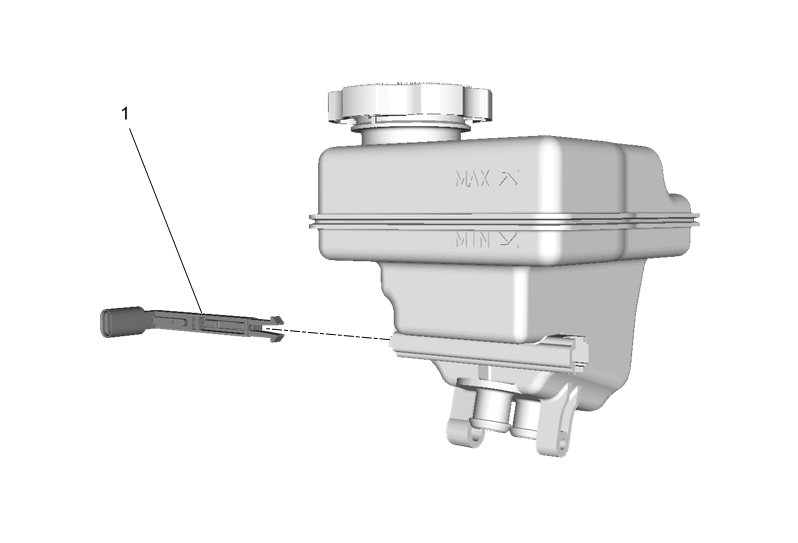

GM4282098Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Brake Master Cylinder Reservoir Replacement (LGX) Brake Master Cylinder Reservoir Replacement (LTA)
1 Brake Fluid Level Indicator Switch
Compress the locking tabs to release the switch from the master cylinder reservoir.
