Rear Seat Removal and Installation

Courtesy of GENERAL MOTORS COMPANY

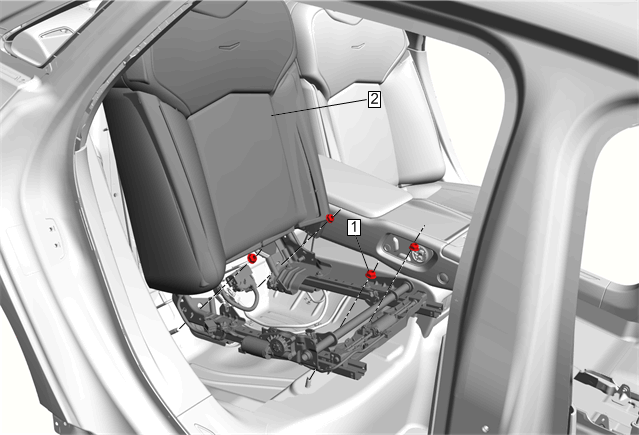

Callout	Component Name
Preliminary Procedure Disconnect the seat belt from the seat riser. Rear Seat Belt Retractor Replacement (except Platinum)Rear Seat Belt Retractor Replacement (Platinum)
1	Rear Seat Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat NOTE: When installing the right hand seat, ensure that the center seat belt is routed through the hook and loop strap at the bottom of the seat back cushion. Disconnect the electrical connector. Lift the rear seat and rotate the lower frame forward, lowering the rear seat back to disengage it from the rear seat support.
