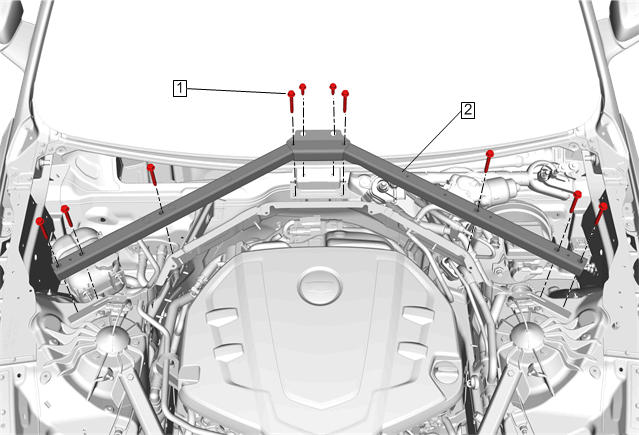

Front End Sheet Metal Cross Brace Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Inlet Grille Panel Replacement Windshield Washer Solvent Container Filler Tube Replacement Remove radiator surge tank bolt and reposition. Radiator Surge Tank Replacement (LGX)Radiator Surge Tank Replacement (LTA)
1	Front End Sheet Metal Cross Brace Bolt [10x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front End Sheet Metal Cross Brace Procedure Reposition the 4 wiring harness retainers from front end sheet metal cross brace.

Callout

Component Name

Preliminary Procedures

Front End Sheet Metal Cross Brace Bolt [10x]

CAUTION:

Tighten
22 N.m (16 lb ft)

Front End Sheet Metal Cross Brace
Procedure
Reposition the 4 wiring harness retainers from front end sheet metal cross brace.
