Rocker Panel Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

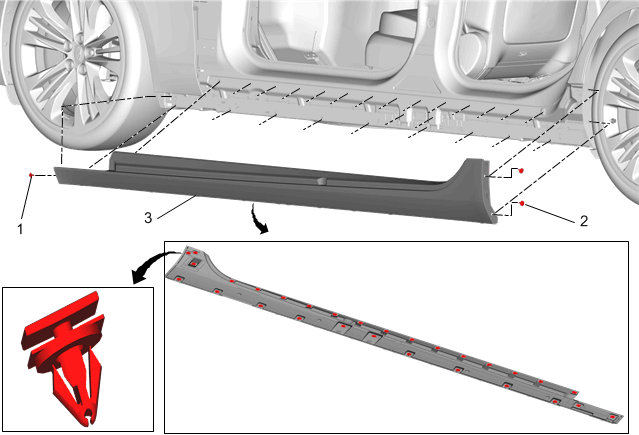

Callout	Component Name
Preliminary Procedures Open the front and rear side doors.
1	Front Wheelhouse Liner Bolt Procedure Front Wheelhouse Liner Replacement (CT6)Front Wheelhouse Liner Replacement (CT6-V)
2	Rear Wheelhouse Liner Bolt [2x] Procedure Rear Wheelhouse Liner Replacement
3	Rocker Panel Molding Procedure Using the appropriate tool, release the retainers from the bottom edge and pull down the rocker panel molding from the body side outer panel. Using the appropriate tool, release the retainers from the top edge, pull out the rocker panel molding from the body side outer panel and remove from the vehicle.
