Rear Side Door Wiring Harness Replacement

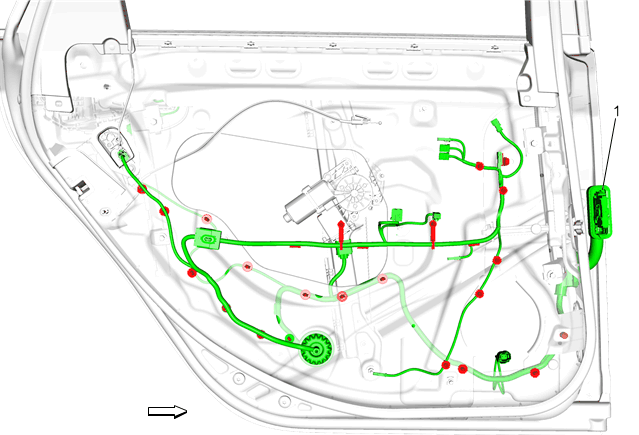

GM4259031Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Radio Rear Side Door Speaker Replacement
  2. Rear Side Door Armrest Pull Cup Bracket Replacement
  3. Remove the rear door water deflector.
1 Rear Side Door Wiring Harness
Procedure
Disconnect the rear side door wiring harness electrical connector from the body harness.
