Rear Side Door Armrest Pull Cup Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

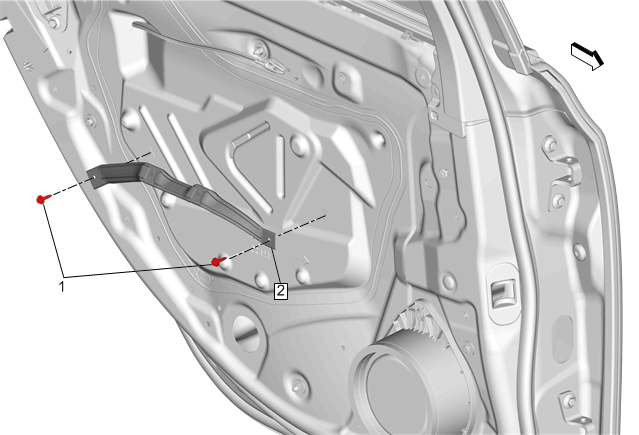

Callout	Component Name
Preliminary Procedure  Rear Side Door Trim Replacement
1	Rear Side Door Armrest Pull Cup Bracket Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Side Door Armrest Pull Cup Bracket
