Rear Side Door Weatherstrip Replacement - Body Side

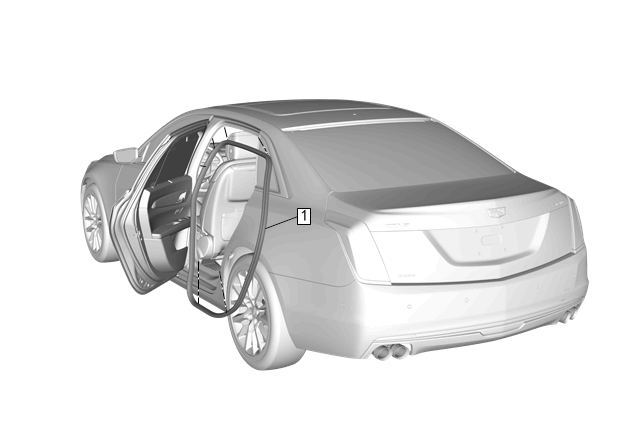

GM4258181

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Center Pillar Lower Trim Panel Replacement

1

Rear Side Door Weatherstrip - Body Side

Procedure

Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange.
Position the weatherstrip in the upper corner of the center pillar.
Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners.
