Hood Primary Latch Release Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

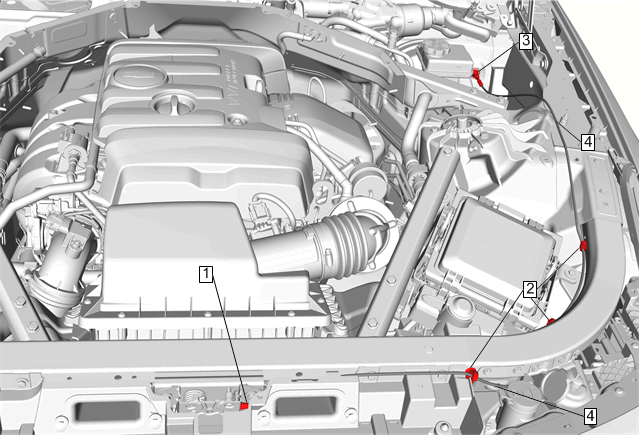

Callout	Component Name
Preliminary Procedure Front Compartment Front Sight Shield Replacement Hood Primary Latch Release Cable Handle Replacement Hood Primary and Secondary Latch Replacement (LGX)
1	Hood Primary Latch Release Cable at Latch Procedure Disconnect the release cable from the hood primary latch.
2	Hood Primary Latch Release Cable Retainer [3x] Procedure Remove the 2 left outer retainers from the air inlet grille panel. Disconnect the hood release cable retainers from the hood release cable.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure Attach mechanics wire to the cable and pull the cable out. Attach mechanics wire to the new cable and guide in.
