Front Side Door Weatherstrip Replacement - Body Side

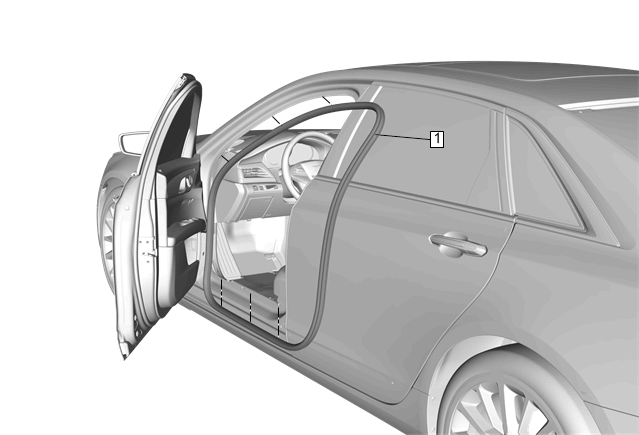

GM4258093Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Outer Trim Cover Replacement
  2. Center Pillar Lower Trim Panel Replacement
1 Front Side Door Weatherstrip - Body Side

Procedure

  1. Using the appropriate tool, remove the weatherstrip retainers from around the body flange.
  2. Carefully pull the weatherstrip from the body flange.
