Front Fender Insulator Replacement

Courtesy of GENERAL MOTORS COMPANY

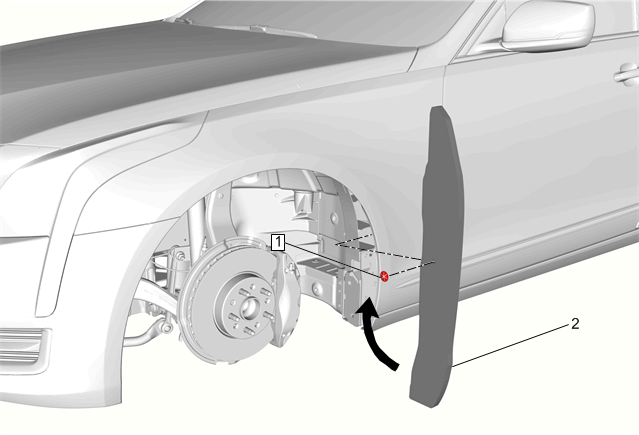

Callout	Component Name
Preliminary Procedure Reposition the rear half of the front wheel house liner. Front Wheelhouse Liner Replacement (CT6)Front Wheelhouse Liner Replacement (CT6-V)
1	Front Fender Insulator Retainer
2	Front Fender Insulator Procedure Grasp the front fender insulator and pull from the rear of the fender. Firmly press the fender insulator into the rear of the fender until fully seated.

Callout

Component Name

Front Fender Insulator Retainer

Front Fender Insulator

Procedure

Grasp the front fender insulator and pull from the rear of the fender.
Firmly press the fender insulator into the rear of the fender until fully seated.
