Front Fender Front Brace Replacement

Courtesy of GENERAL MOTORS COMPANY

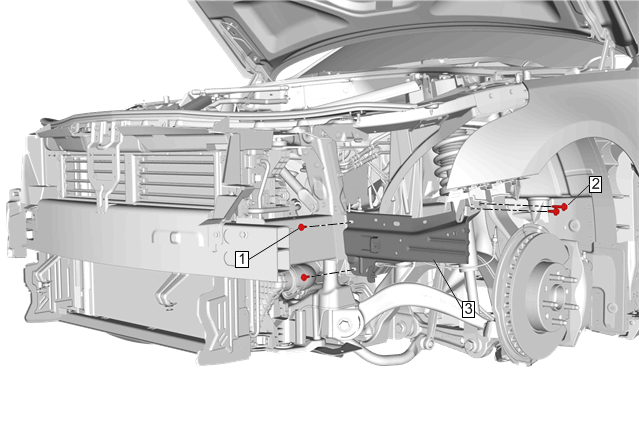

Callout	Component Name
Preliminary Procedures Windshield Washer Solvent Container Replacement (Without LTA)Windshield Washer Solvent Container Replacement (With LTA) Front Headlamp Replacement
1	Front Fender Front Brace Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Fender Bolt [2x] Tighten 9 N.m (80 lb in)
3	Front Fender Front Brace
