Removal Procedure
- Recover the refrigerant. Refrigerant Recovery and Recharging
- Drain the cooling system. Cooling System Draining and Filling (Static, LGX)Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (LTA Static)
Windshield Wiper Transmission (2) - Remove - Windshield Wiper Transmission Replacement
Air Conditioning Refrigerant Heat Exchanger (2) @ Air Conditioning Evaporator Thermal Expansion Valve - Remove - Air Conditioning Refrigerant Heat Exchanger Replacement (C24)Air Conditioning Refrigerant Heat Exchanger Replacement (LGX with CJ2)Air Conditioning Refrigerant Heat Exchanger Replacement (LTA C24)Air Conditioning Refrigerant Heat Exchanger Replacement (LTA CJ2)
From within the engine compartment, remove the heater and air conditioning evaporator and blower module bolt (1), securing the heater and air conditioning evaporator and blower module to the cowl panel.
Heater Inlet Hose (3) @ Heater Core Tube - Remove - Heater Inlet Hose Replacement (Auxiliary Heater Inlet and Outlet Pipe to Auxiliary Air Conditioning Evaporator Intermediate Tube LGX)Heater Inlet Hose Replacement (At Heater Core Inlet Tube LGX)Heater Inlet Hose Replacement (Heater Core Inlet Tube to Auxiliary Heater Inlet and Outlet Pipe LTA)
Heater Outlet Hose (3) @ Heater Core Tube - Remove - Heater Outlet Hose Replacement (Auxiliary Heater Inlet and Outlet Pipe to Auxiliary Air Conditioning Evaporator Intermediate Tube LGX)Heater Outlet Hose Replacement (At Heater Core Tube LGX)Heater Outlet Hose Replacement (Auxiliary Water Pump to Engine Front Cover Water Outlet LTA)Heater Outlet Hose Replacement (Heater Core Outlet Tube to Heater Inlet and Outlet Pipe and Radiator Surge Tank LTA)
Windshield Garnish molding (1) - Remove - Windshield Garnish Molding Replacement [2x]
Body Control Module (1) - Remove - Body Control Module Replacement
Air Conditioning Evaporator and Blower Module Drain Hose - Right Side (1) - Remove - Air Conditioning Evaporator and Blower Module Drain Hose Replacement (Right Side)Air Conditioning Evaporator and Blower Module Drain Hose Replacement (Left Side)
Air Conditioning Evaporator and Blower Module Drain Hose - Left Side (1) - Remove - Air Conditioning Evaporator and Blower Module Drain Hose Replacement (Right Side)Air Conditioning Evaporator and Blower Module Drain Hose Replacement (Left Side)
Instrument Panel Carrier (1) - Remove - Instrument Panel Carrier Replacement (UQH) Instrument Panel Carrier Replacement (UQA, UQS)
- Carefully disconnect the instrument panel wiring harness and both connectors on the right side windshield pillar.
- The instrument panel wiring harness fuse block is removed with the instrument panel tie bar as an assembly.
- Disconnect all electrical connectors.
- Note the location and routing of the wiring harness to ensure proper reinstallation.
Instrument Panel Tie Bar Bolt (1) - Remove [3x]
Brake Pedal Assembly (1) - Remove - Brake Pedal Assembly Replacement (LGX)Brake Pedal Assembly Replacement (LTA)
Instrument Panel Tie Bar Bolt (1) - Remove [3x]
- Instrument Panel Tie Bar Nut (2) - Remove
- Air Distributor Nut (3) - Remove
Instrument Panel Tie Bar Nut (2) - Remove
- Instrument Panel Tie Bar Bolt (3) - Remove [2x]

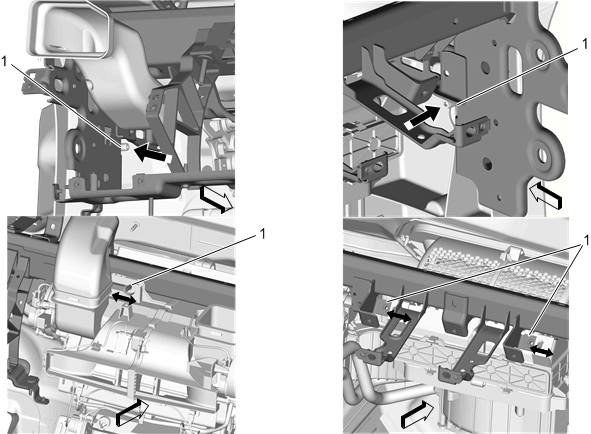

Note the location of the guide pins (1).
- NOTE:
The heater and air conditioning evaporator and blower module is removed with the instrument panel tie bar as an assembly.
With the aid of an assistant, remove the instrument panel tie bar assembly from the vehicle (1).
- Transfer components as necessary.
