Installation Procedure

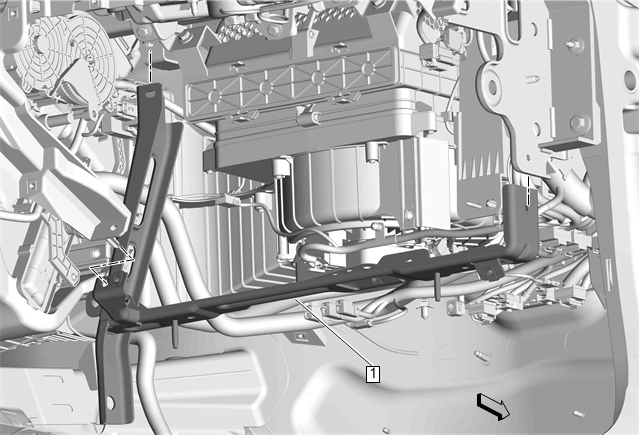

  1. GM4257942Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Support Bracket (1) - Install

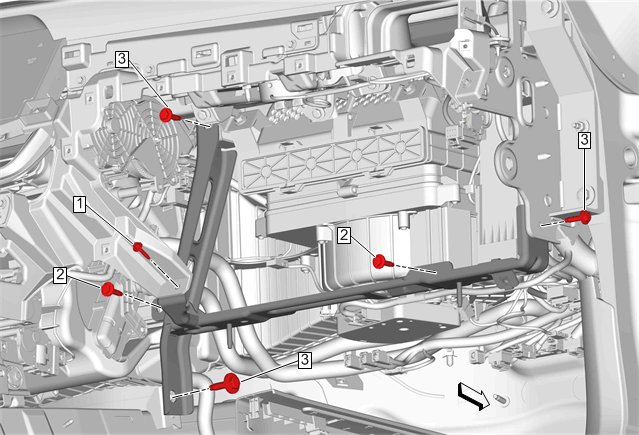

  2. GM4257939Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Tie Bar Bolt (3) - Install and tighten [3x] 22 N.m (16 lb ft)

  3. Instrument Panel Tie Bar Reinforcement Bolt (2) - Install and tighten [2x] 9 N.m (80 lb in)
  4. Instrument Carrier Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
  5. Instrument Panel Compartment - Install - Instrument Panel Compartment Replacement
  6. Floor Front Air Outlet Duct - Right Side - Install - Floor Front Air Outlet Duct Replacement - Right Side
