Floor Front Air Outlet Duct Replacement - Right Side

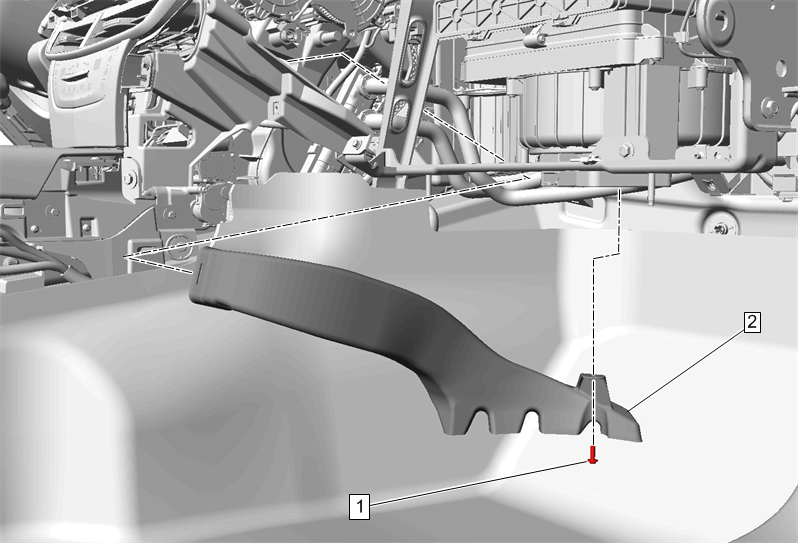

GM4292426Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Compartment Replacement
1 Floor Front Air Outlet Duct Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Floor Front Air Outlet Duct - Right Side
